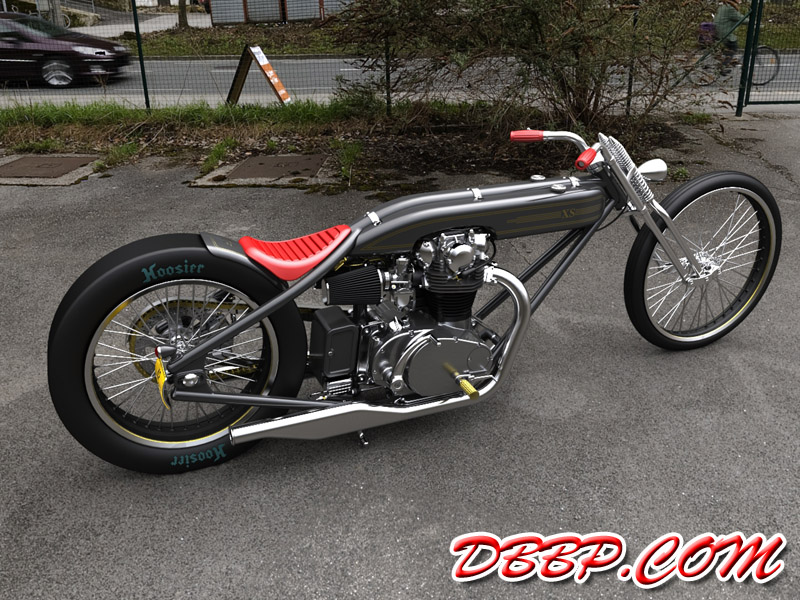

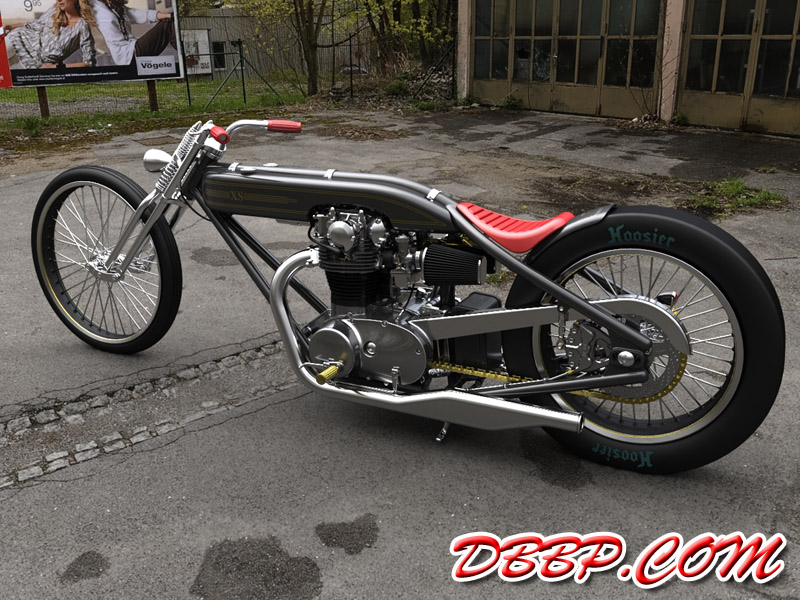

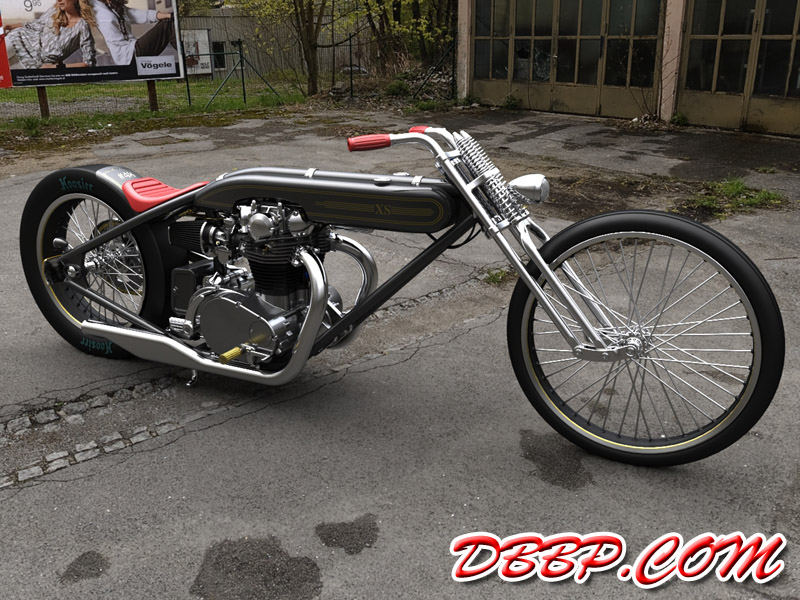

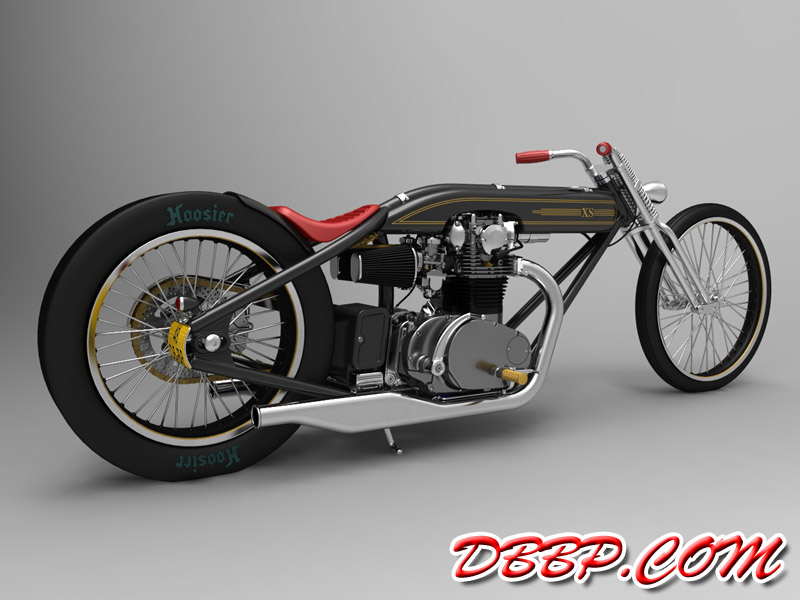

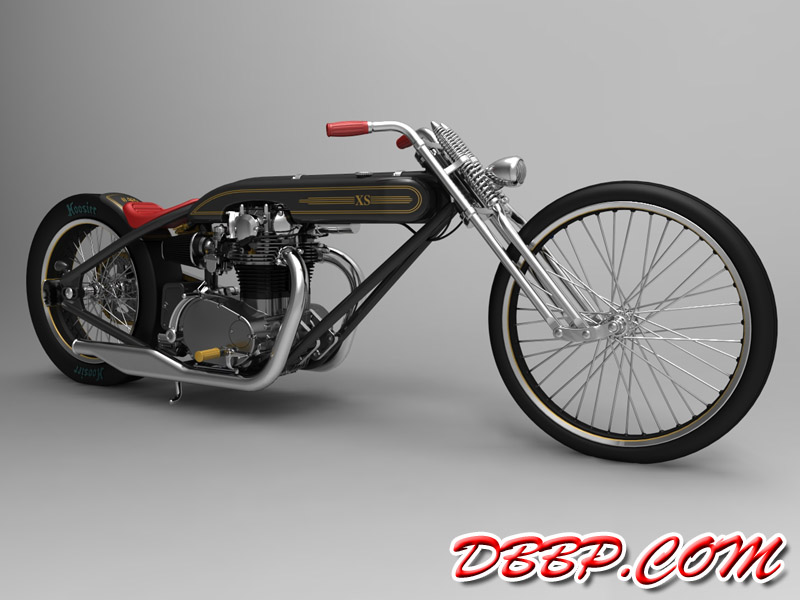

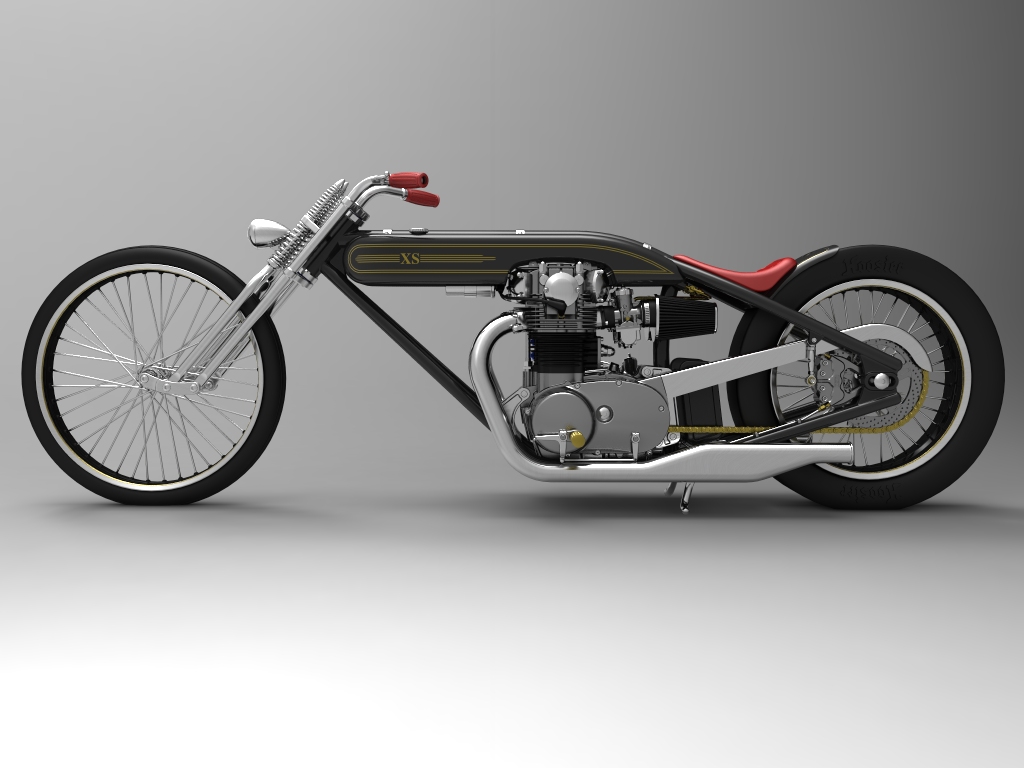

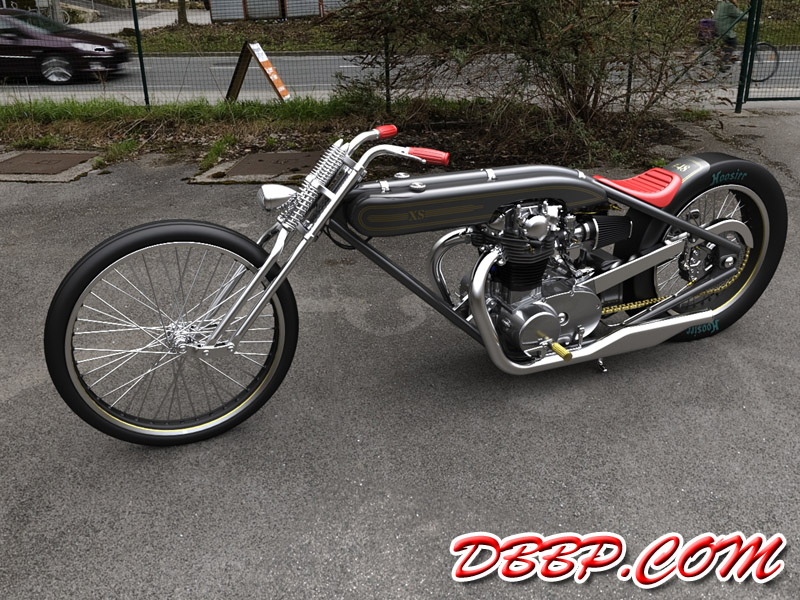

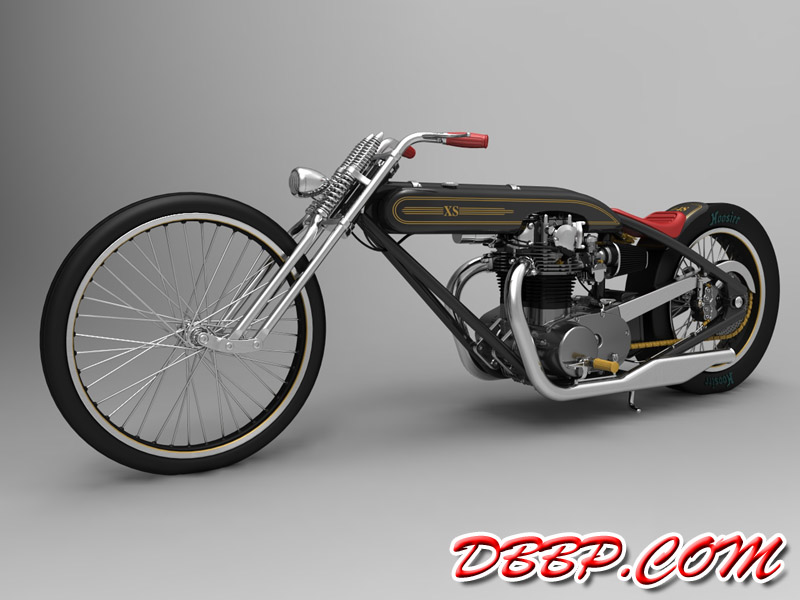

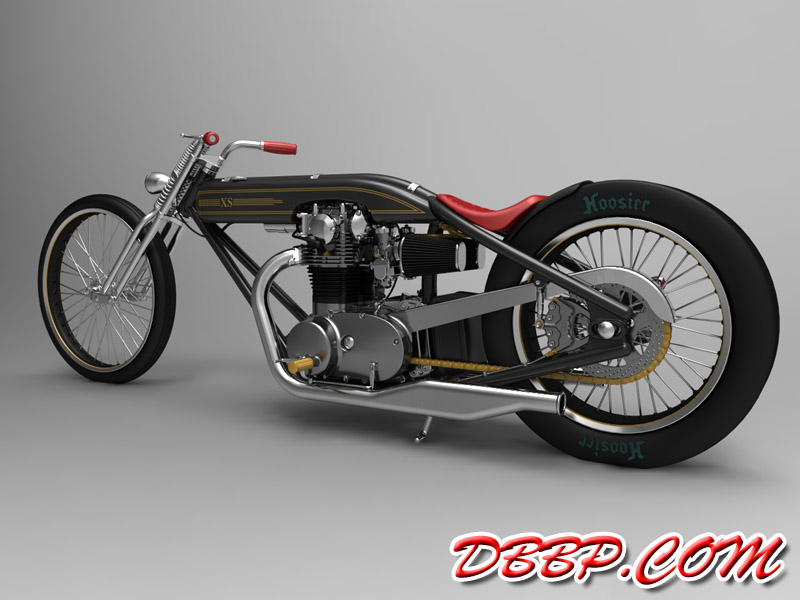

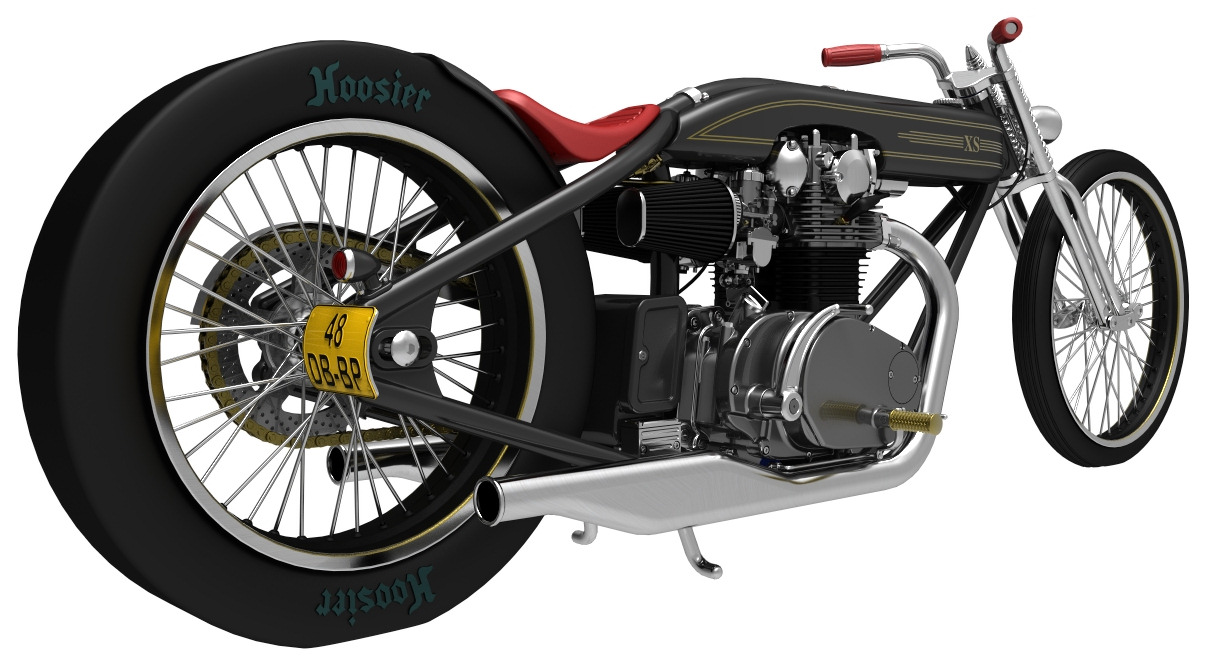

Cadbike #4, a Yamaha XS 650 digger style.

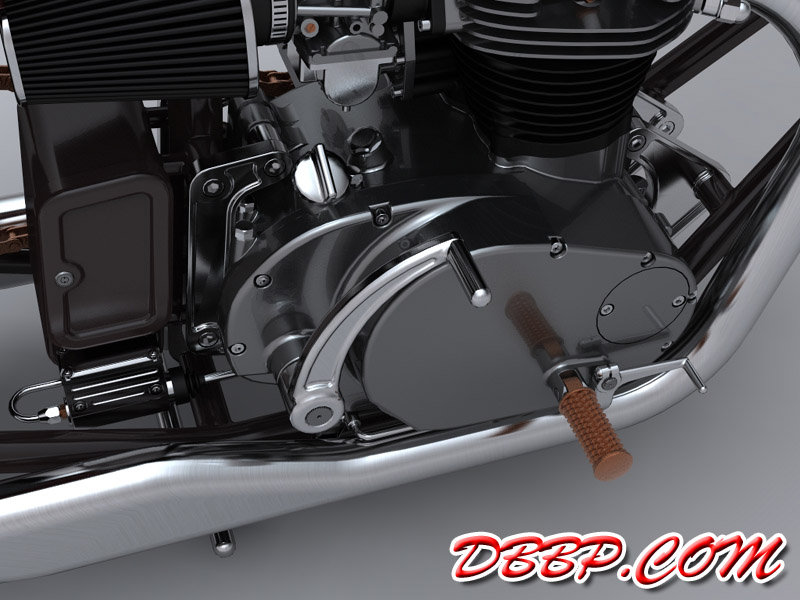

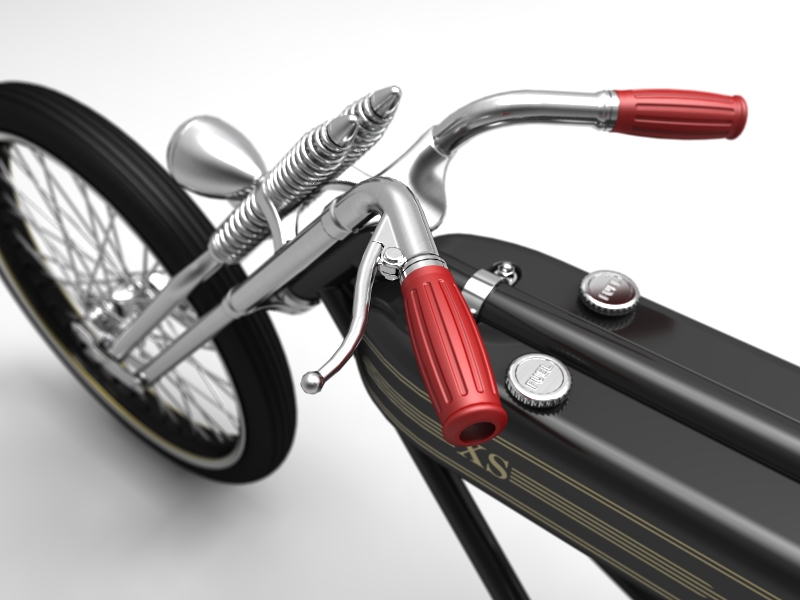

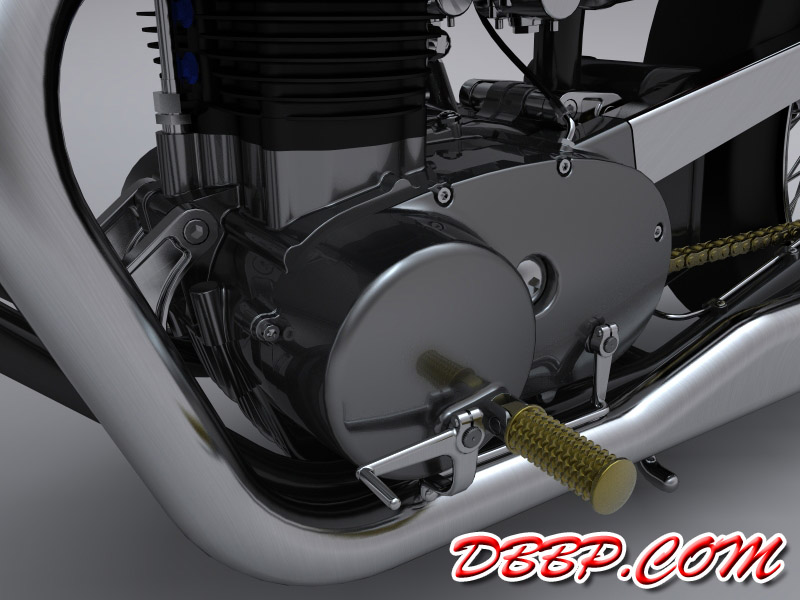

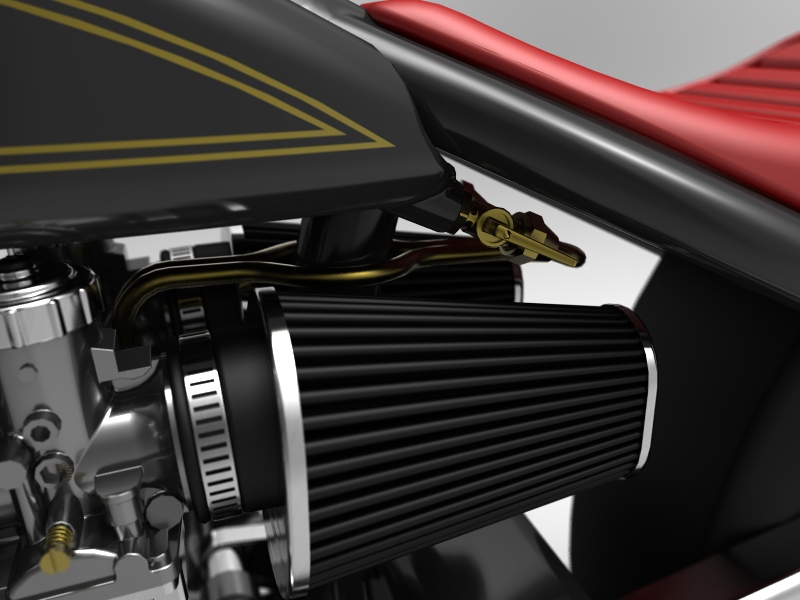

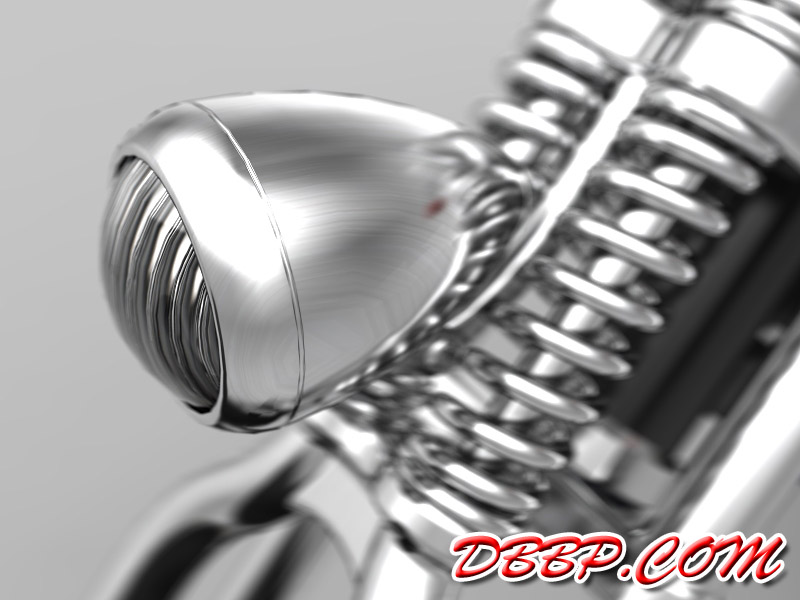

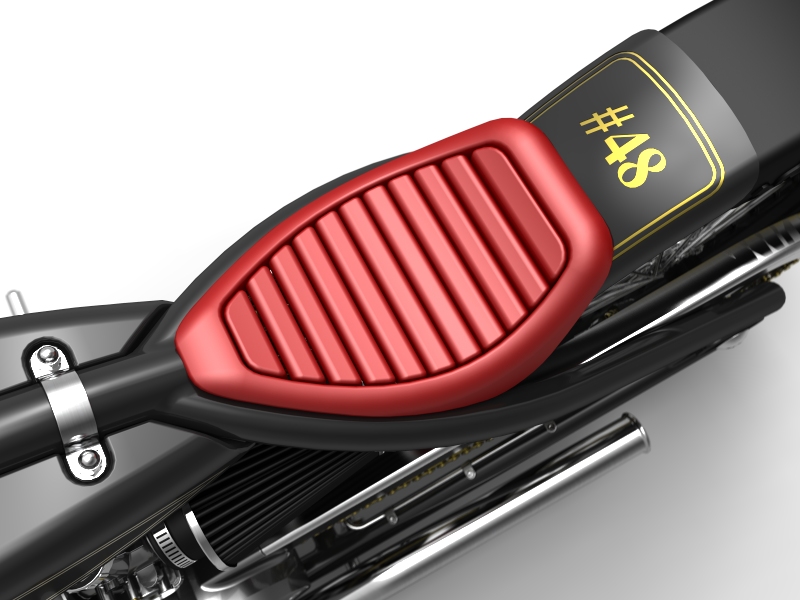

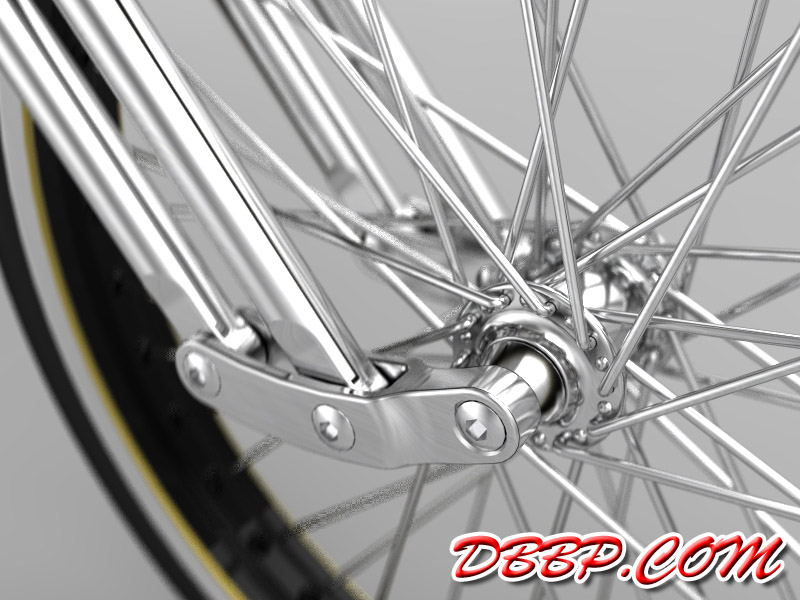

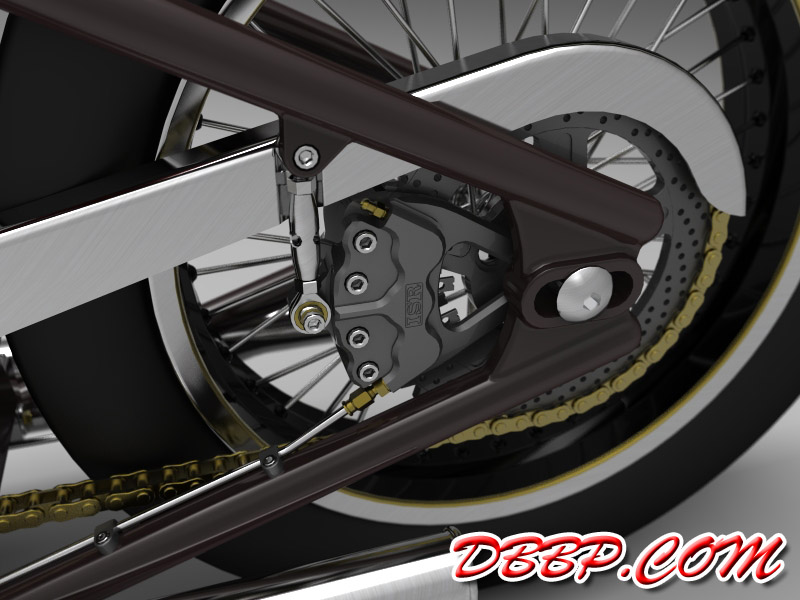

14 February 2011: Project completed! 29 January 2011: Added clutch handle, fuelvalves, fuellines, paint details, tire logo's 17 January 2011: Added ignition coil, sparkplugwires and chainguard. Modified left crankcase cover, added gusset in frame neck. Almost finished! 18 December 2010: Completed brake linkage and brakeline, added centerstand 8 December 2010: Completed shifter linkage, almost completed rear brake linkage. 29 October 2010: Started on footcontrols, added tank and fender graphics 4 September 2010: Added front sprocket, bigger airfilters, smaller pipes, pinstripes on rear fender and a small headlight. And a different color, again.... 1 July 2010: Kickstarter arm, new pipes, new paint 23 June 2010: Added seat, fuelcaps, fueltank mounts and batterybox, plus some extra views 10 April 2010: Added front motormounts, axle bolts, handlebar grips, rear fender 20 March 2010: Just changed the tank and the colour, looks like a completely different bike! 22 February 2010: Completed forks, narrowed front rim. Tried a prism tank, not happy with it yet.. 15 February 2010: Replaced the forks with a new ultra- narrow springer, added chain and rear hub details, removed rear fender.... 28 January 2010: Added spokewheels, lower forktree and rear fender. Also added a comments section at the bottom of this page. 19 January 2010: I replaced the 21" rear tire with an 18" slick, added ISR sprocketbrake, worked on frame and started with the ultra-narrow front forks 6 January 2010: I swapped one of my Harley CAD models for a model of a Yamaha XS 650 engine. This will be an ultra-narrow digger style bike.

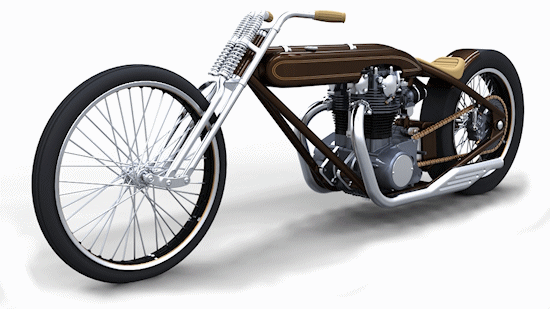

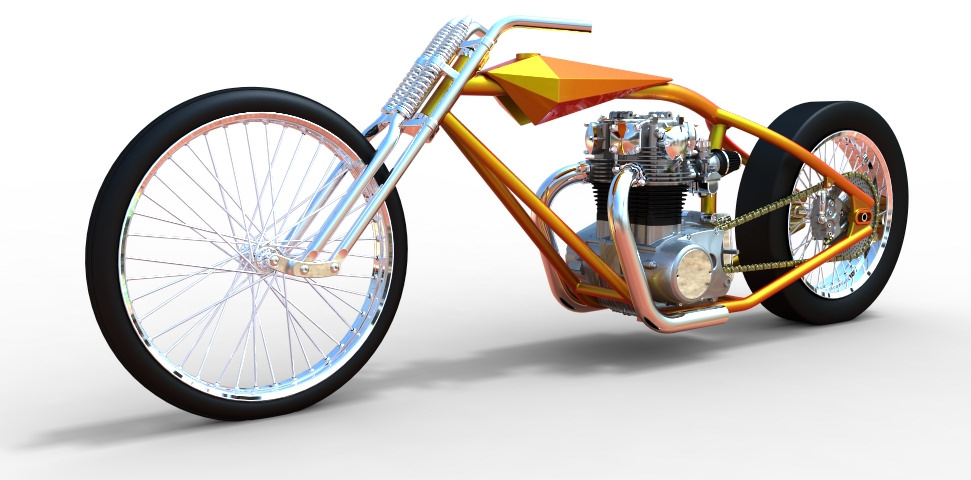

Older versions:
