Project started
December 2020,
See the CAD version here
While we have been focusing on Aad's knucklehead (Cadbike 58)
there has not been a lot of time left for my own Panhead project.

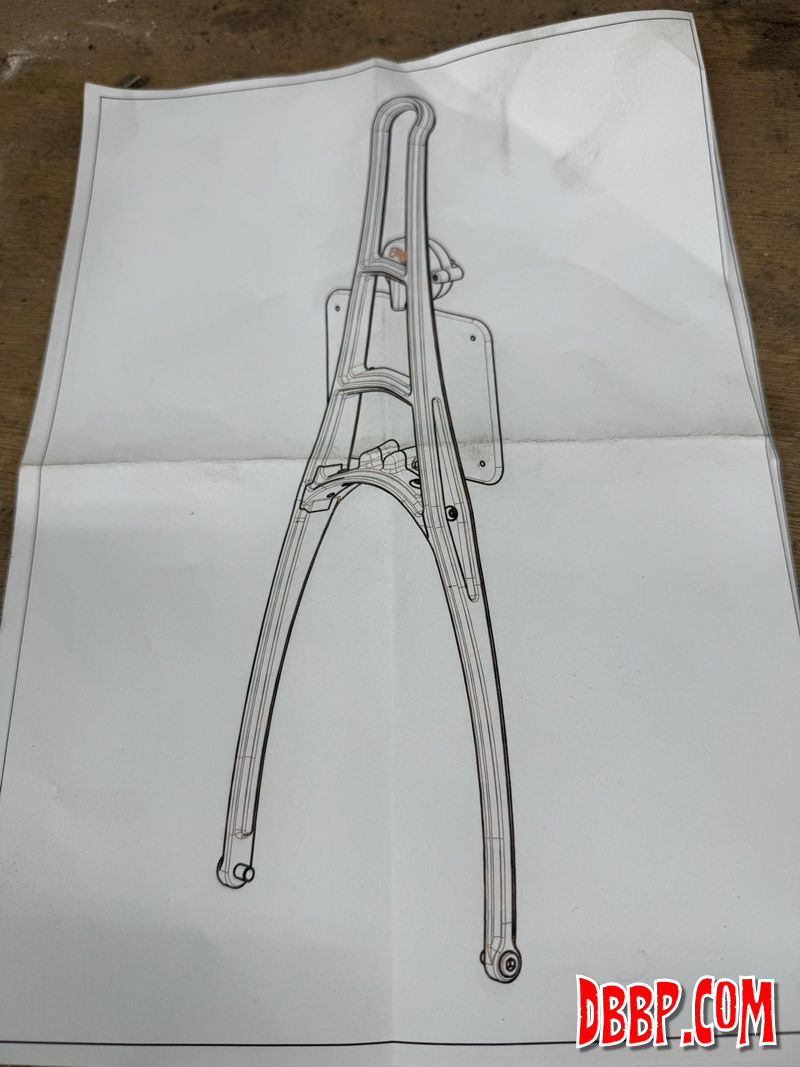

This was also caused by the fact that I had a hard time designing

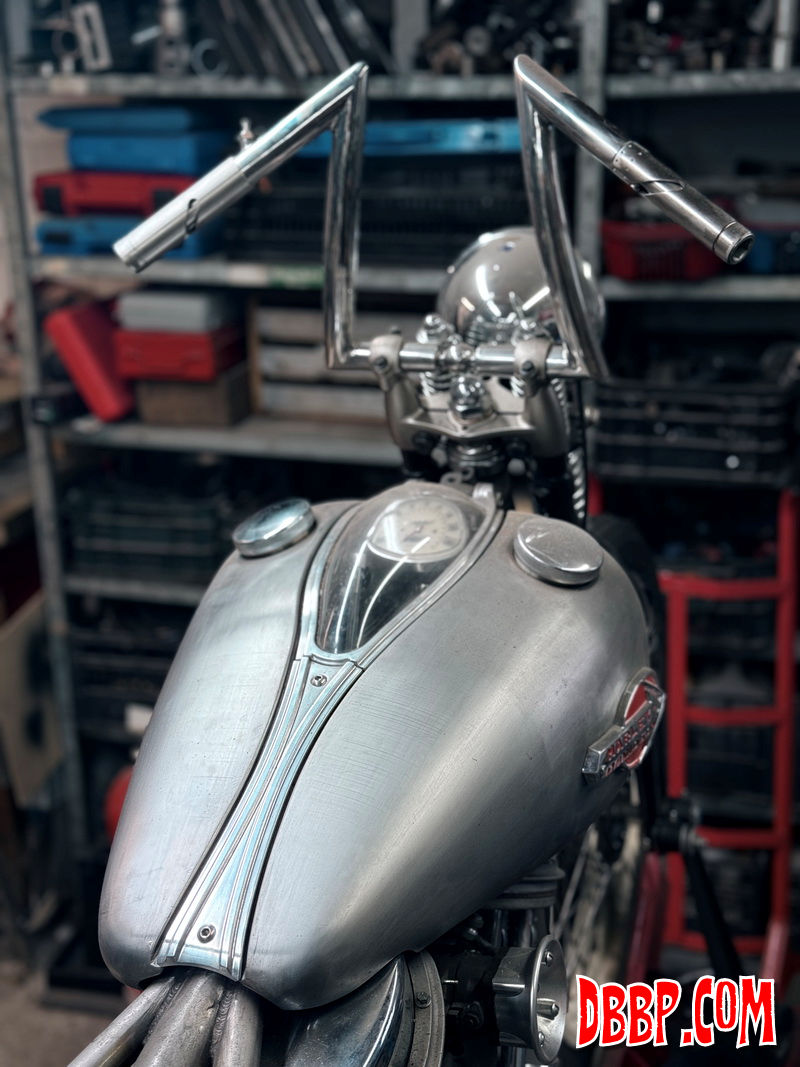

a sissybar that would work well together with the style of the

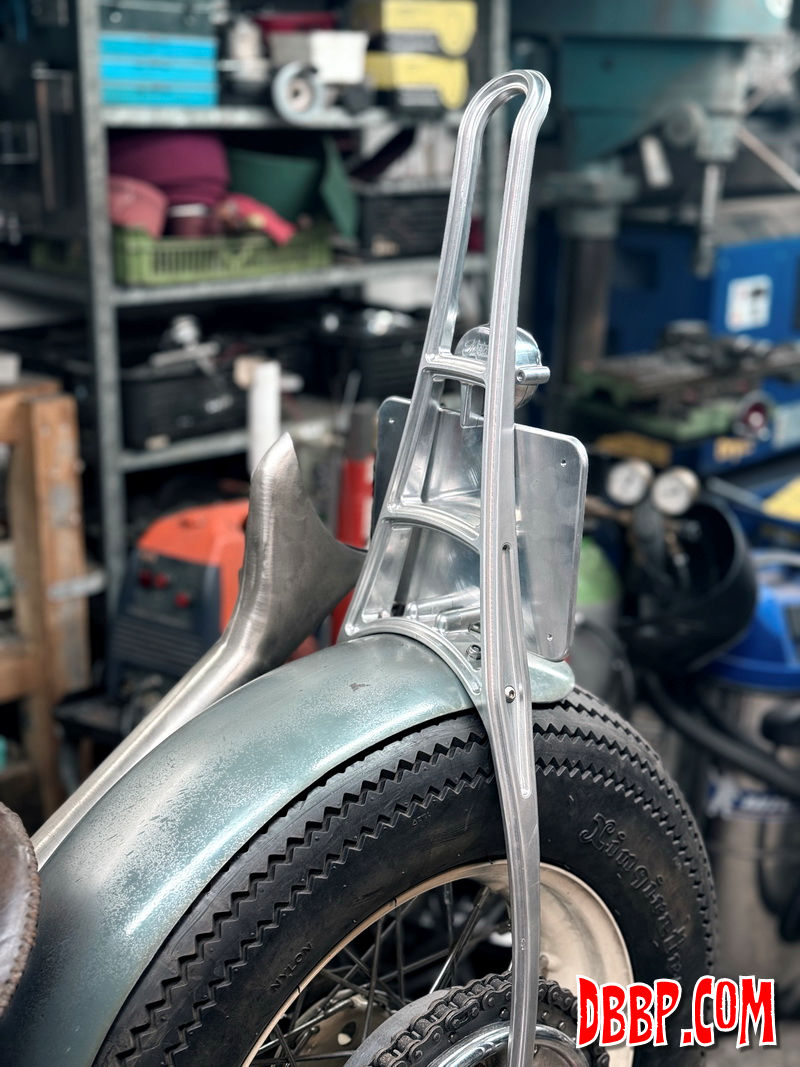

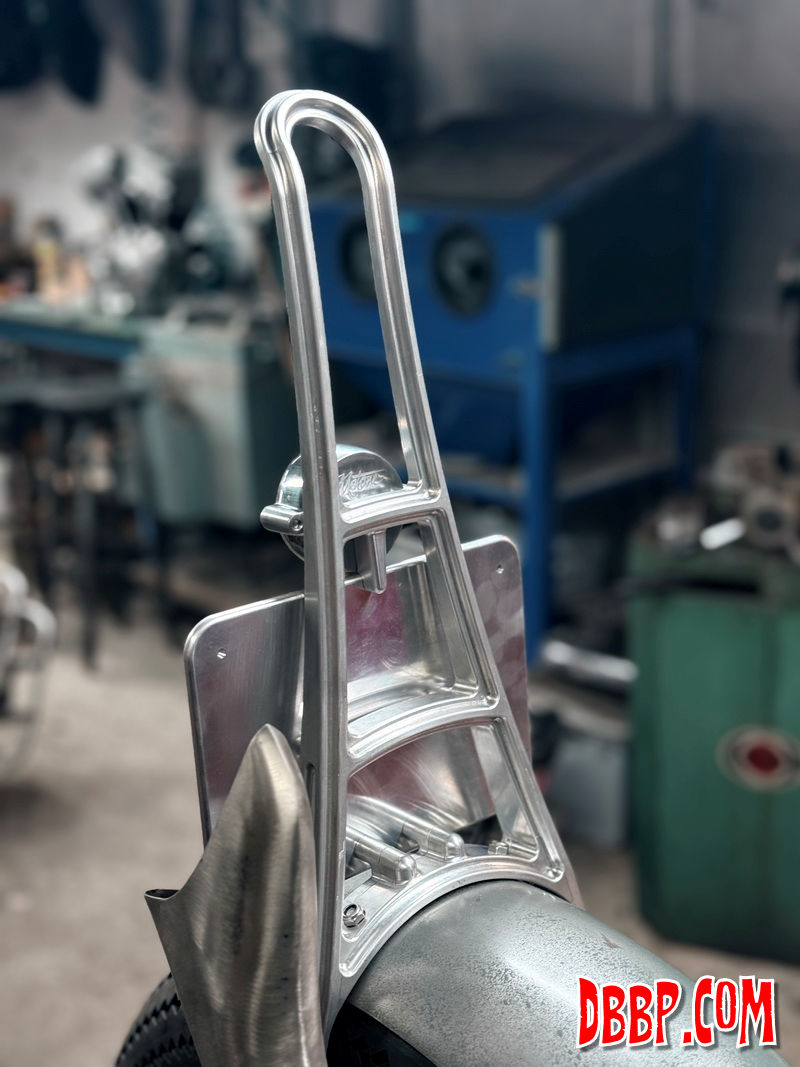

tank and dash. After many discarded designs and changes, this

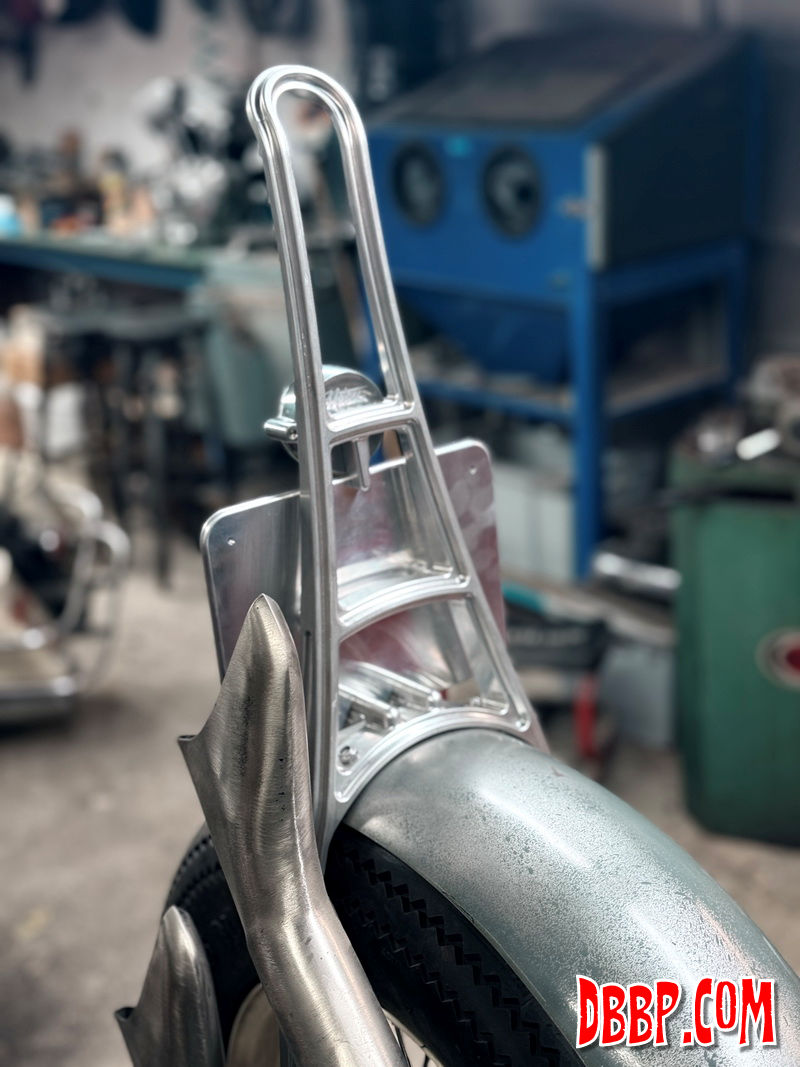

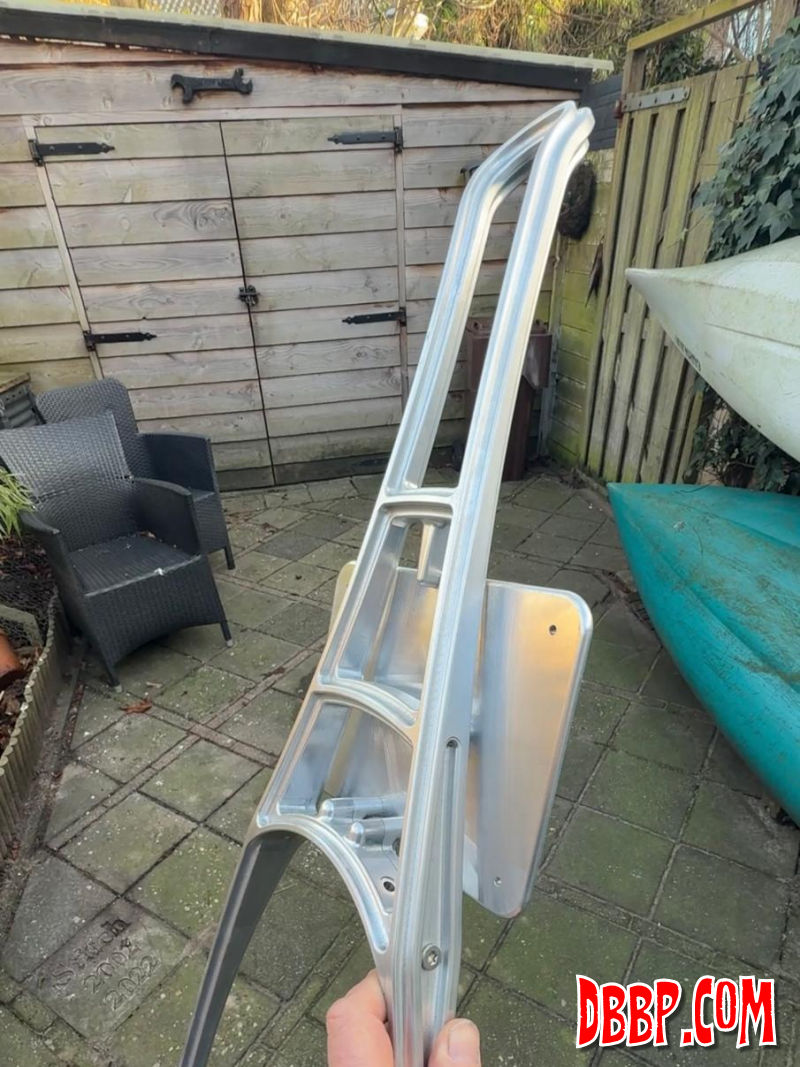

is what I came up with... The whole thing was 5-axis CNC machined

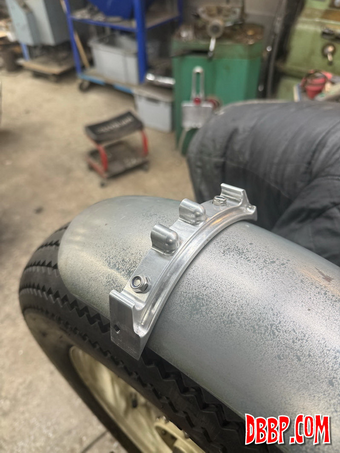

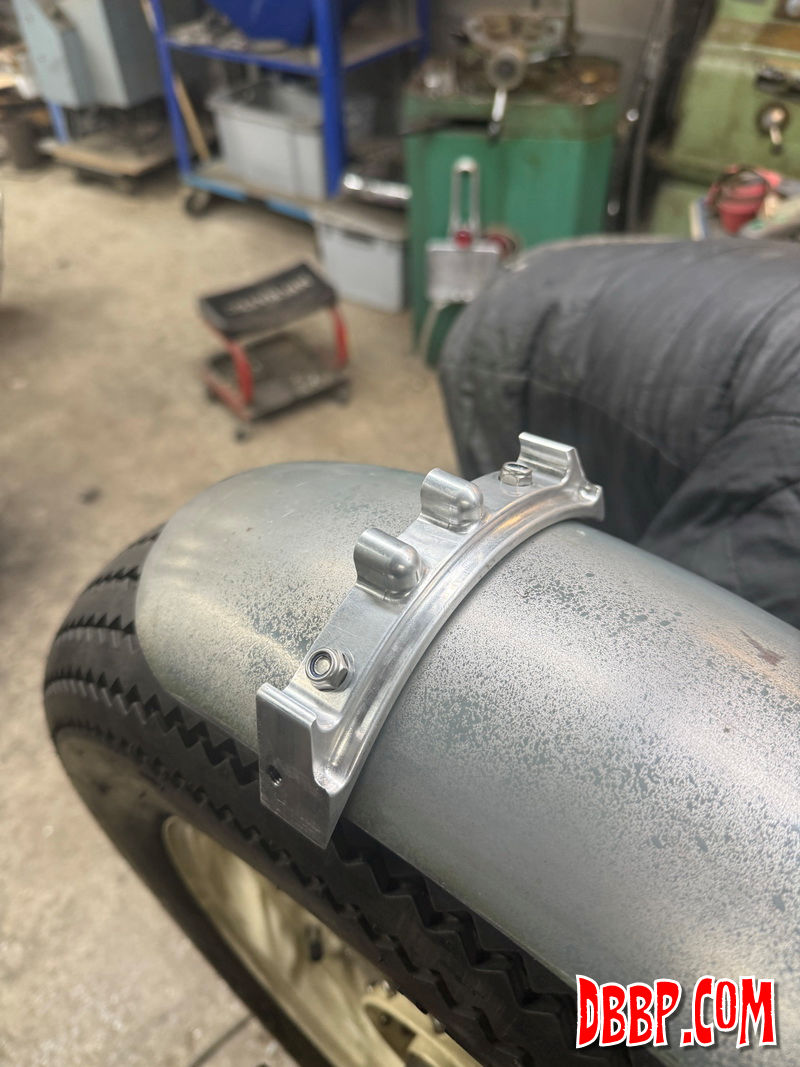

from a large slab of 6061 aluminium. There is a removable part
that will stay mounted to the fender, so that the sissybar can

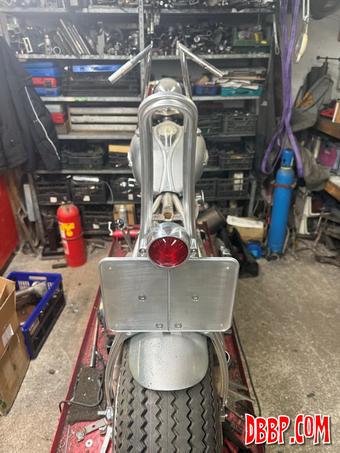

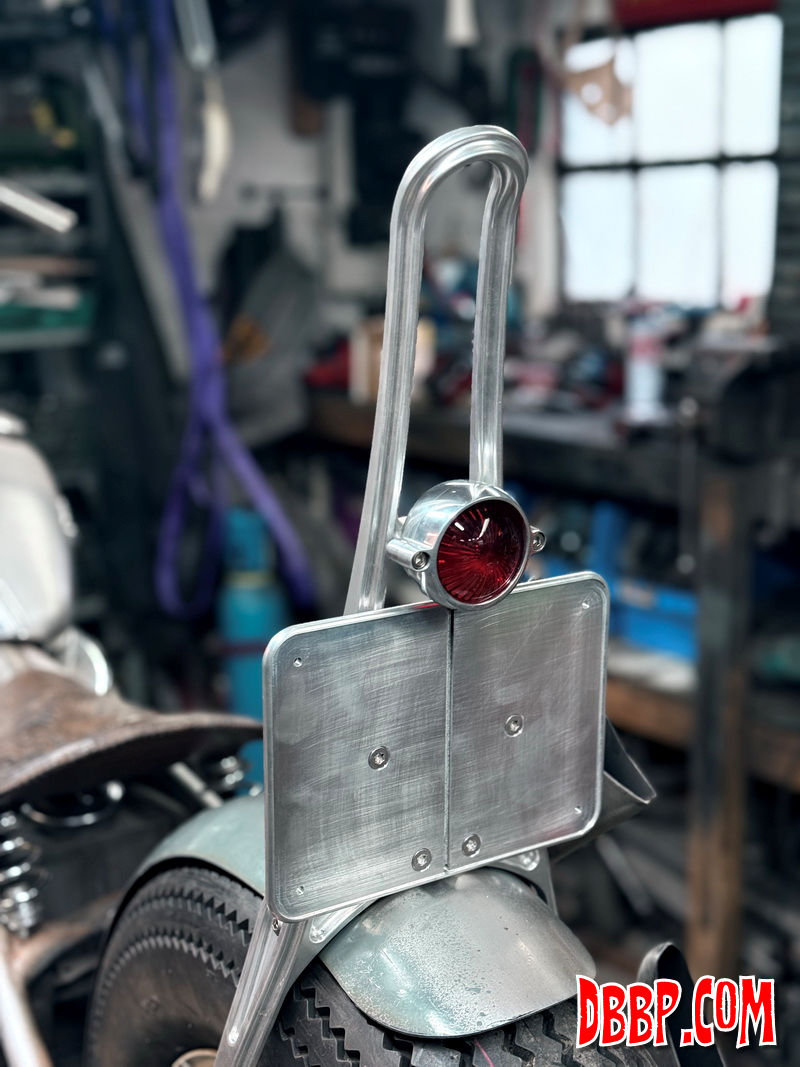

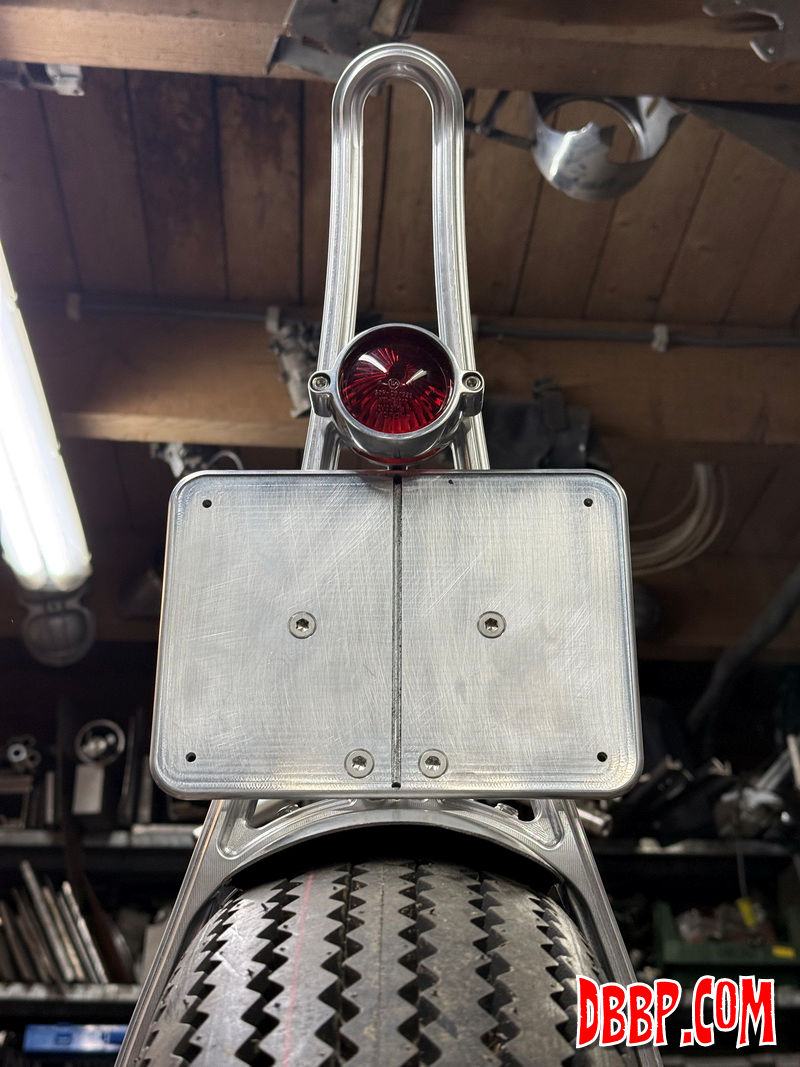

be easily removed. I have included a hidden wiring channel from
the taillight behind the license plate down to the fender.

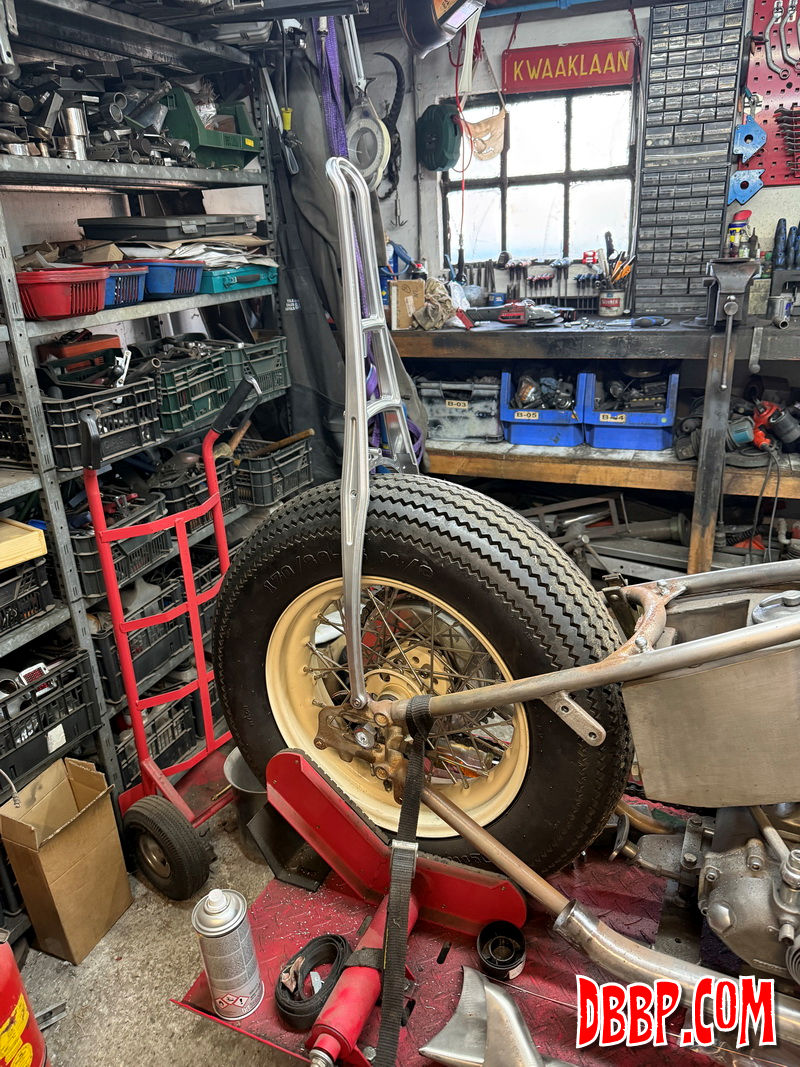

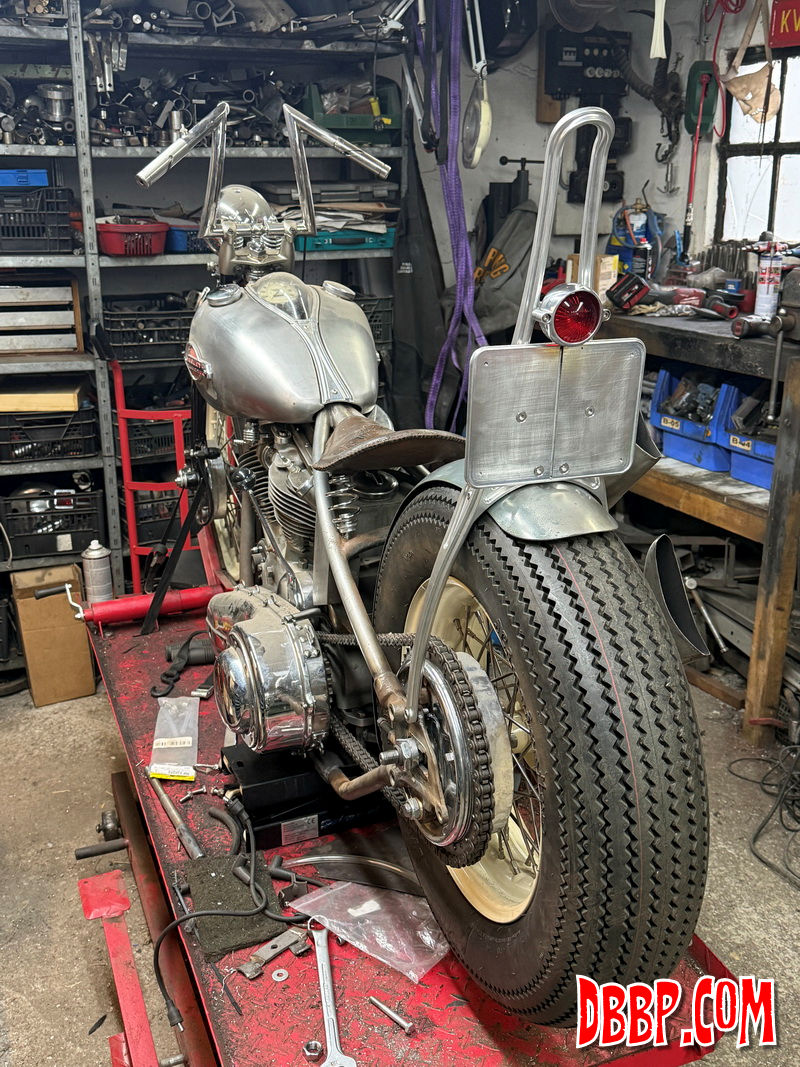

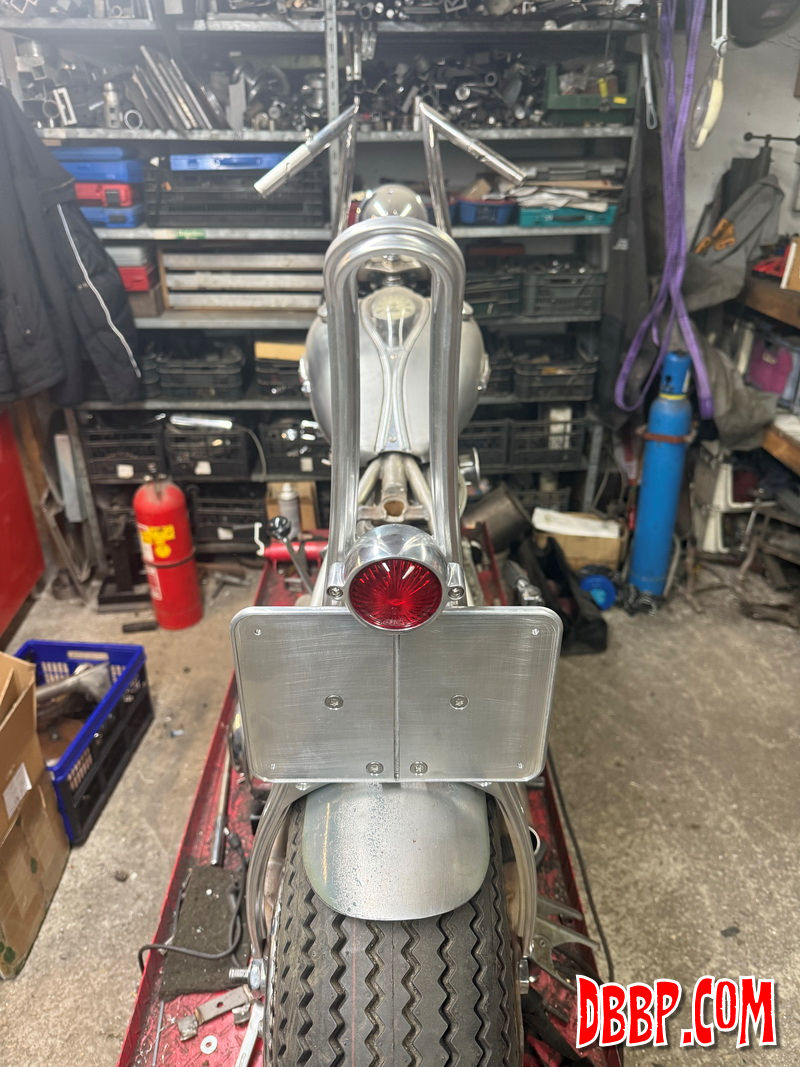

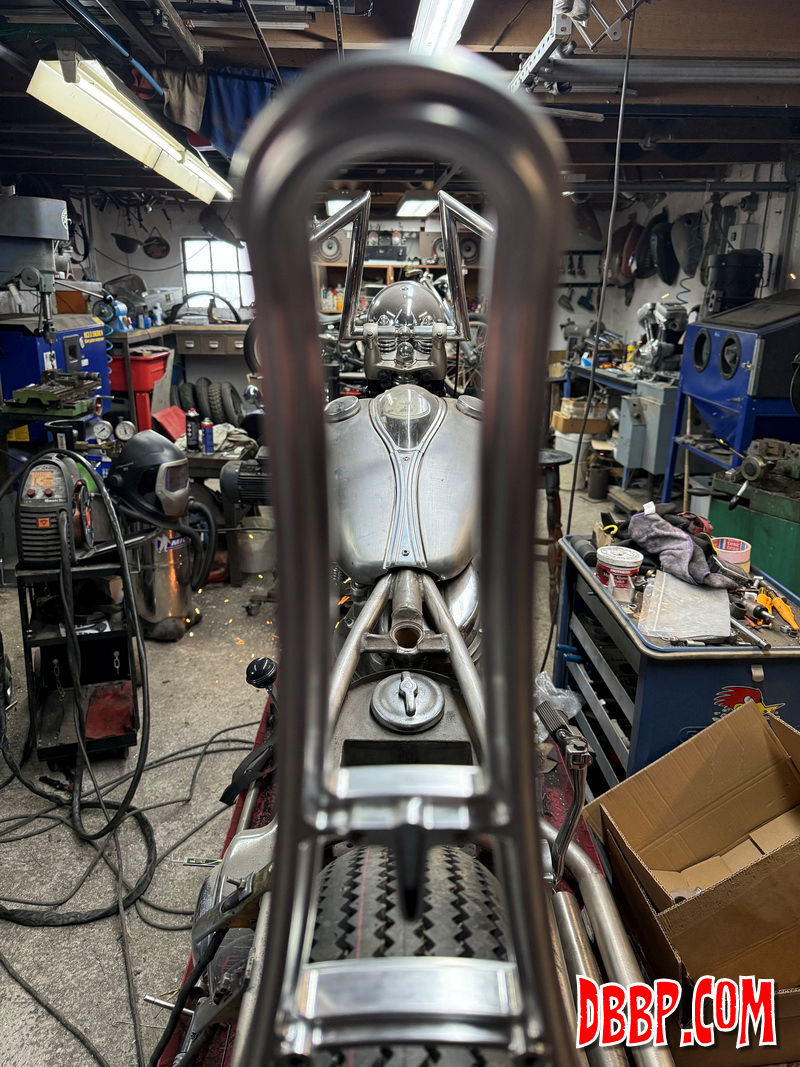

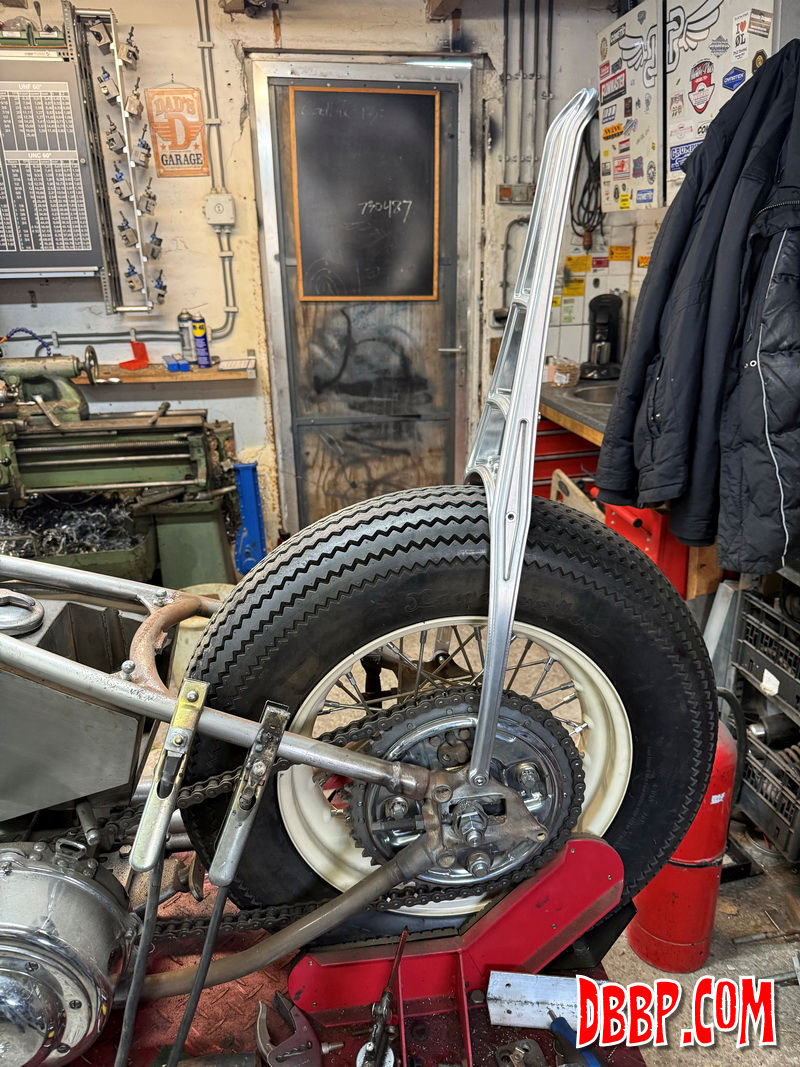

So last week we spent an afternoon in my workshop instead

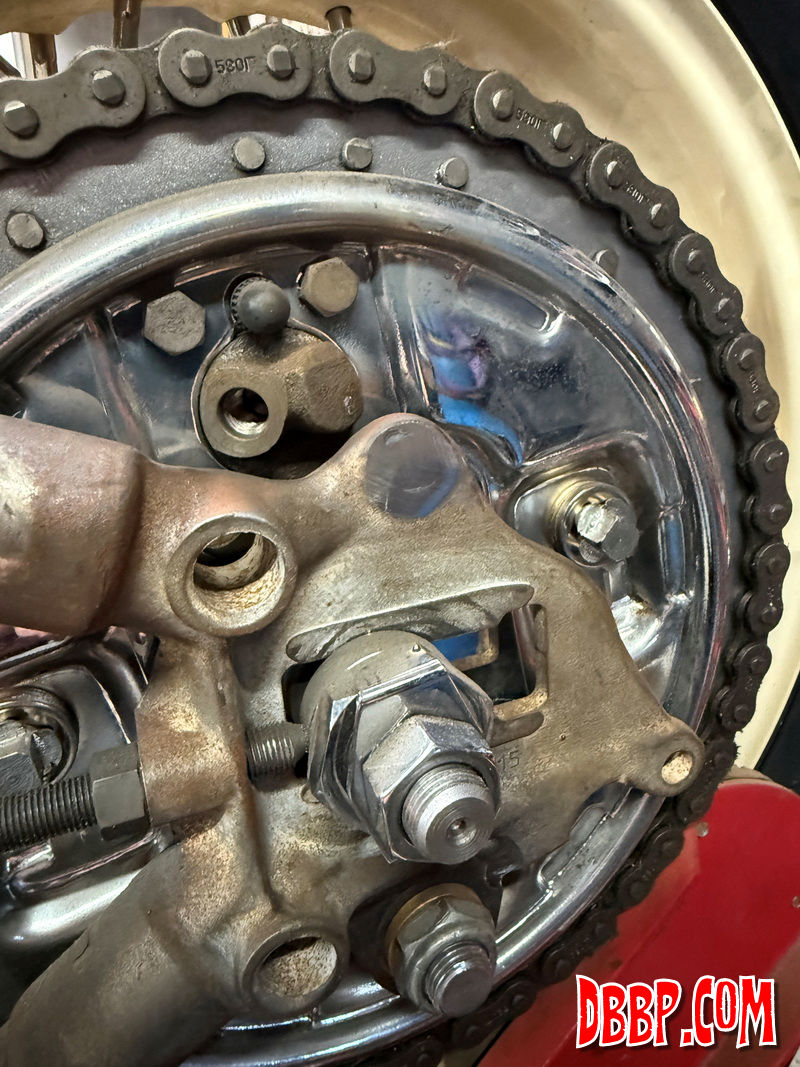

of Aad's to get the sissybar mounted. It turned out that the
mounting holes on the frame were not exactly in the right position

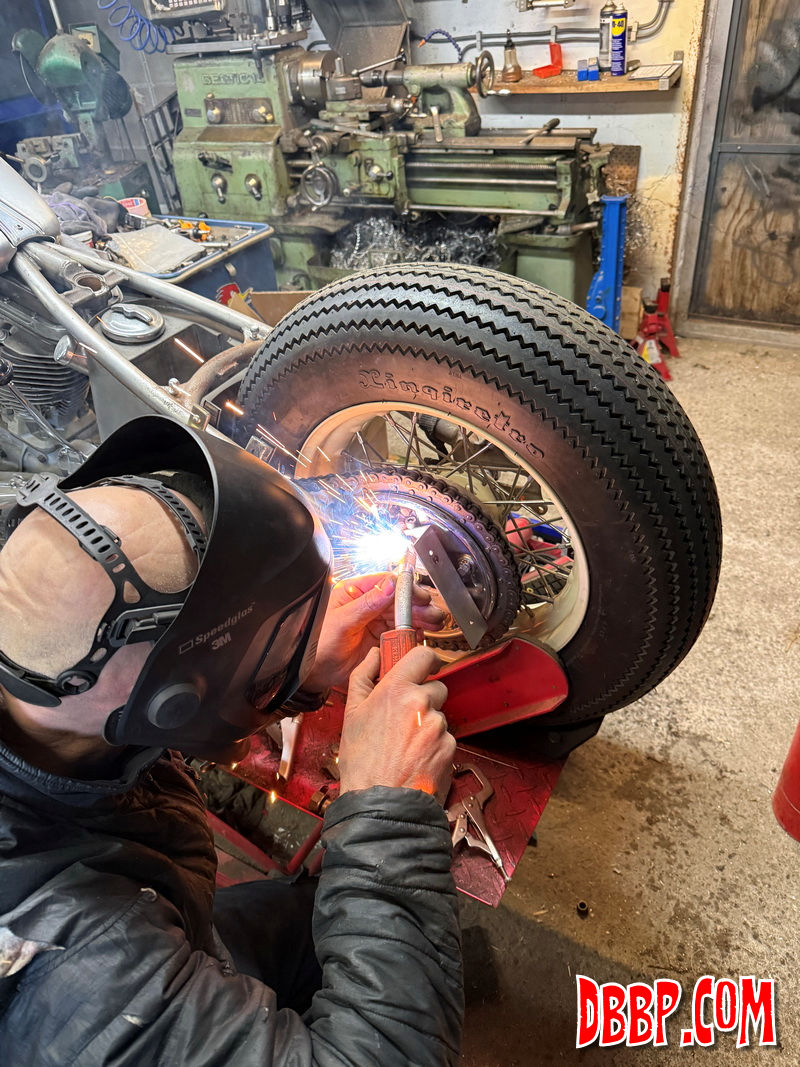

so Aad welded them shut and we drilled and tapped new holes

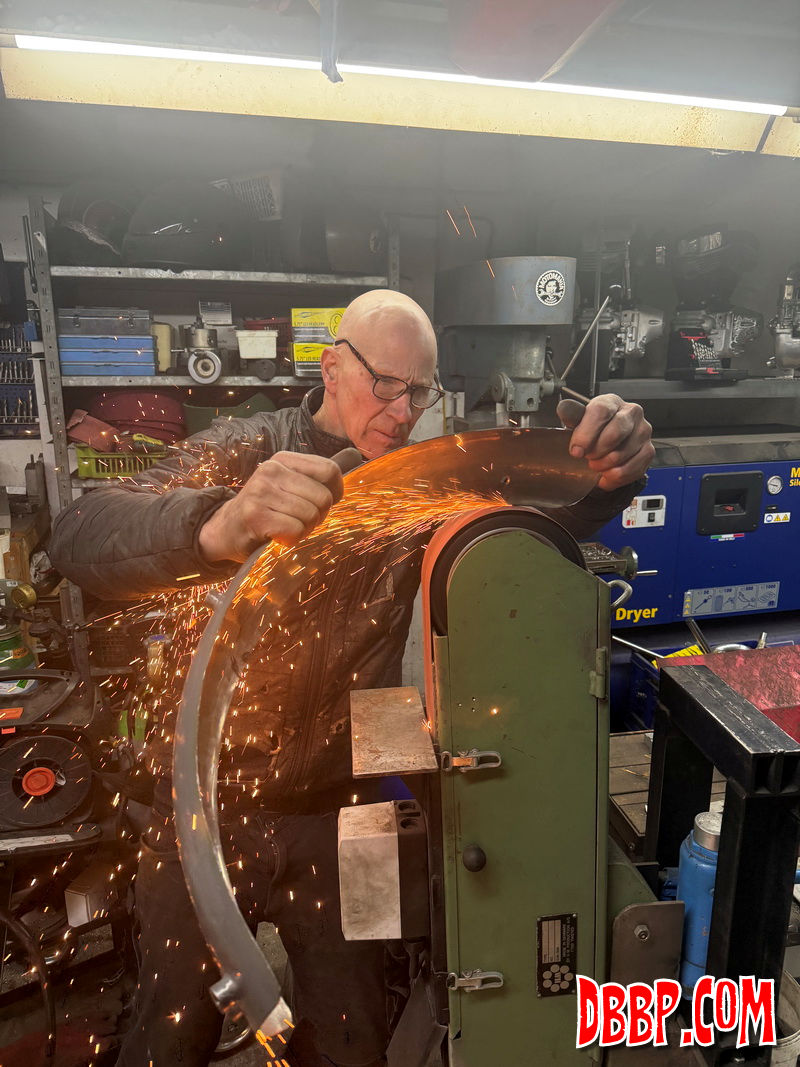

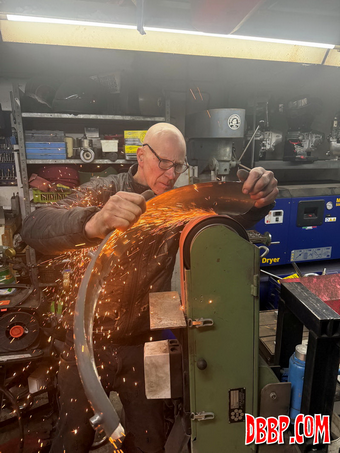

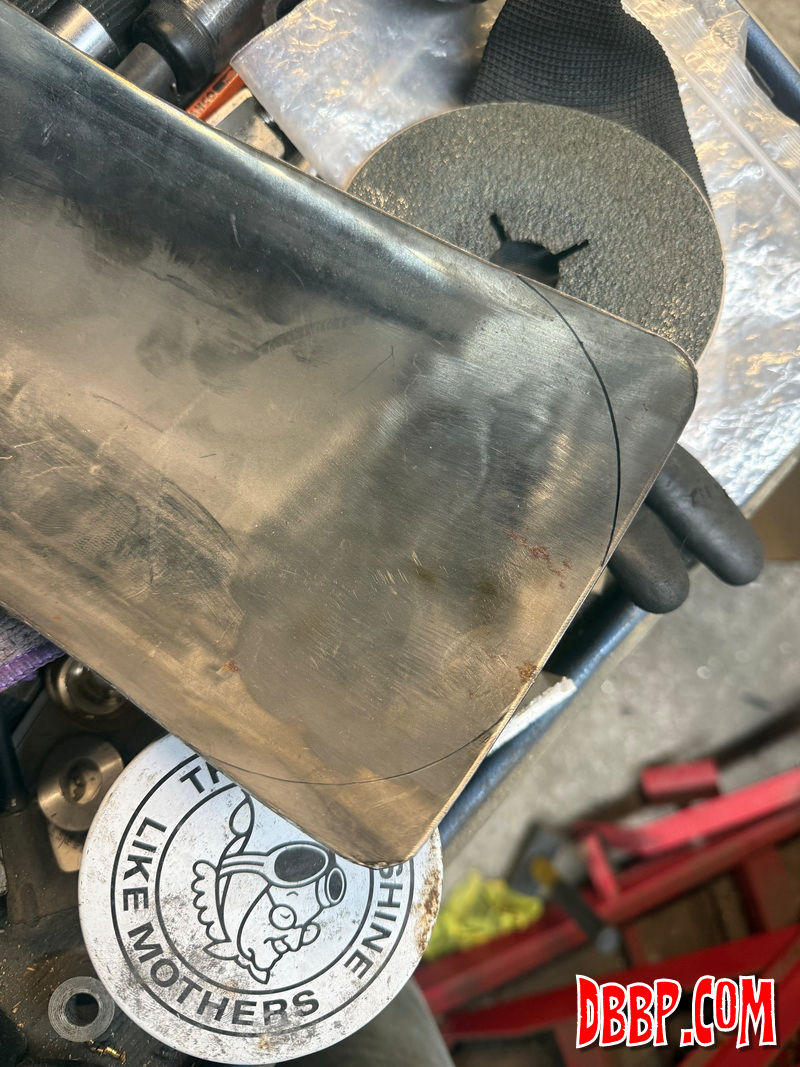

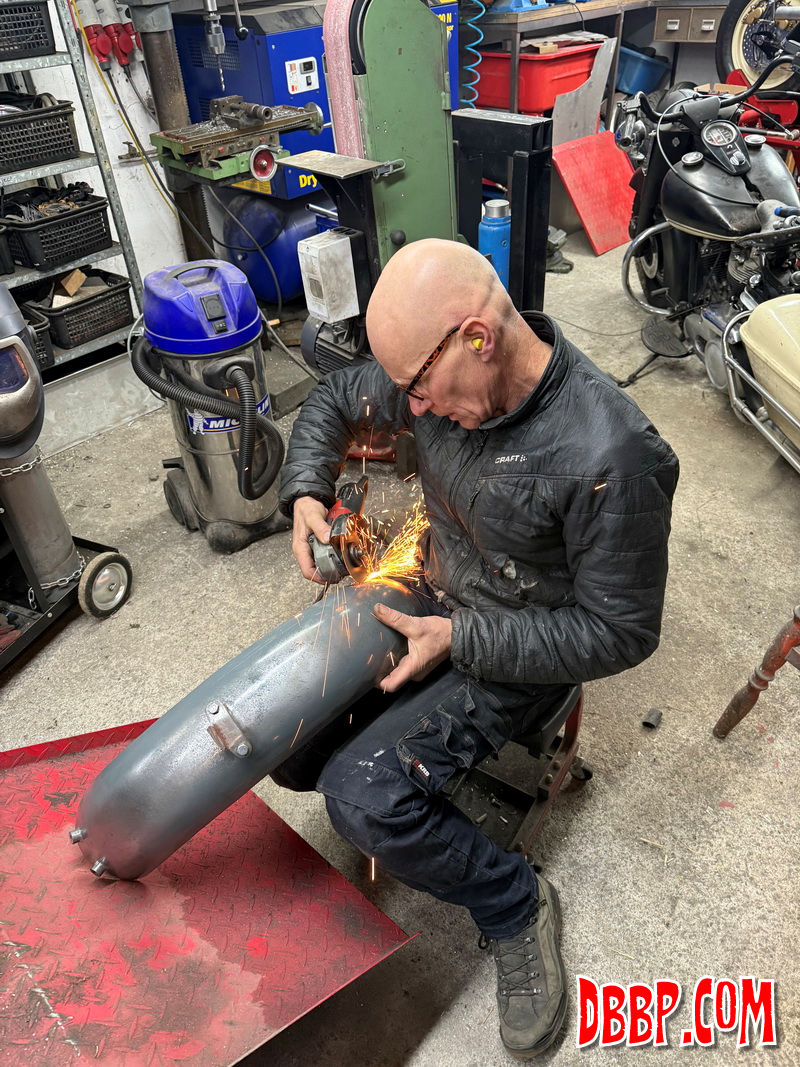

in the right position. We also narrowed the rear fender to make
it about 10 mm narrower than the tire on each side.
This gives a very different look that I really like, and when
it rains I get wet anyway, haha

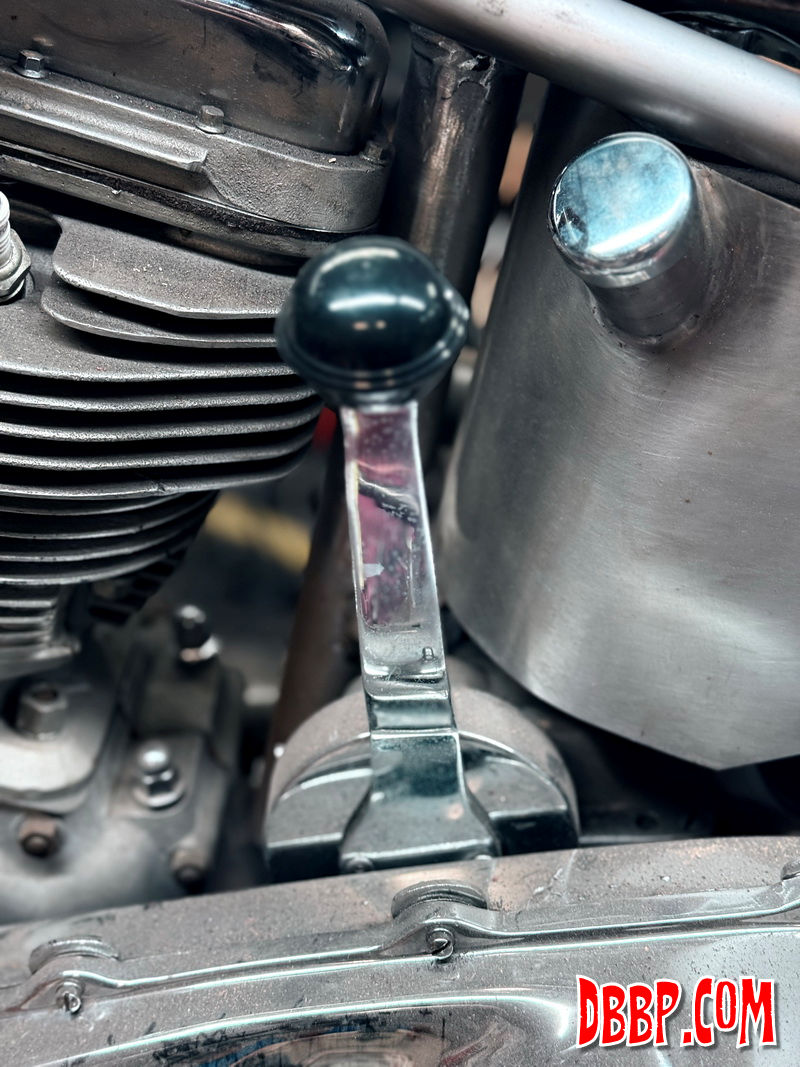

Next will be a shifter in the same style and then the footcontrols...
