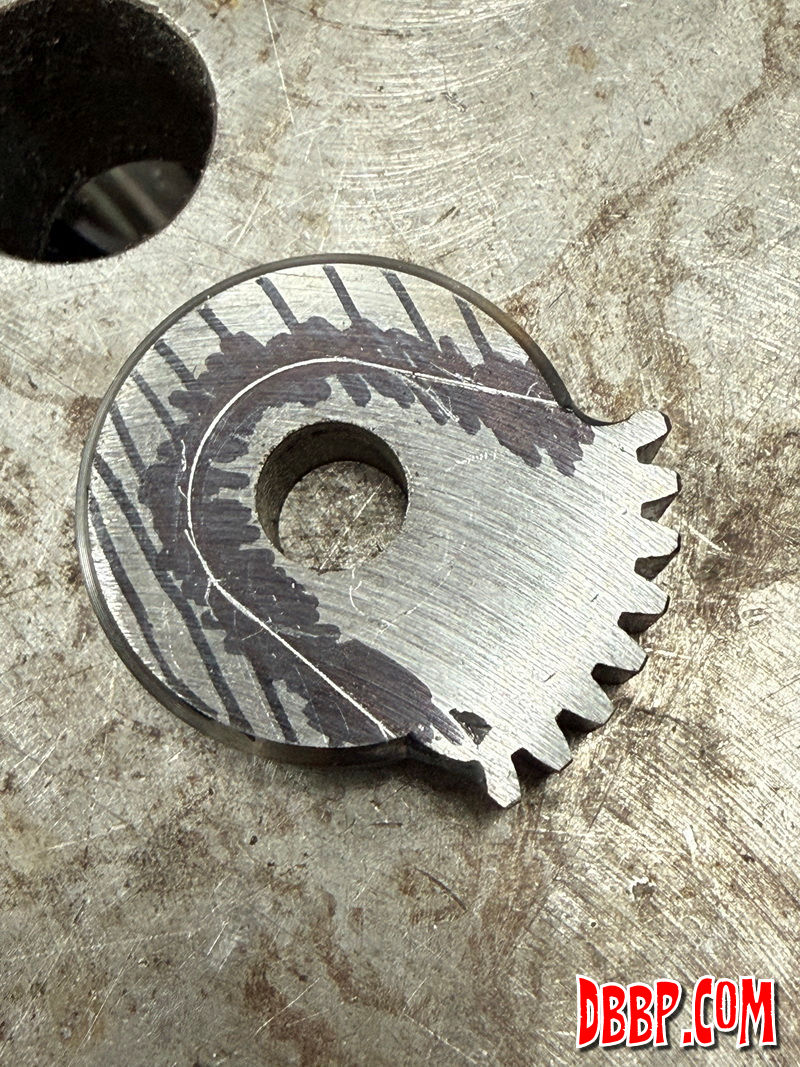

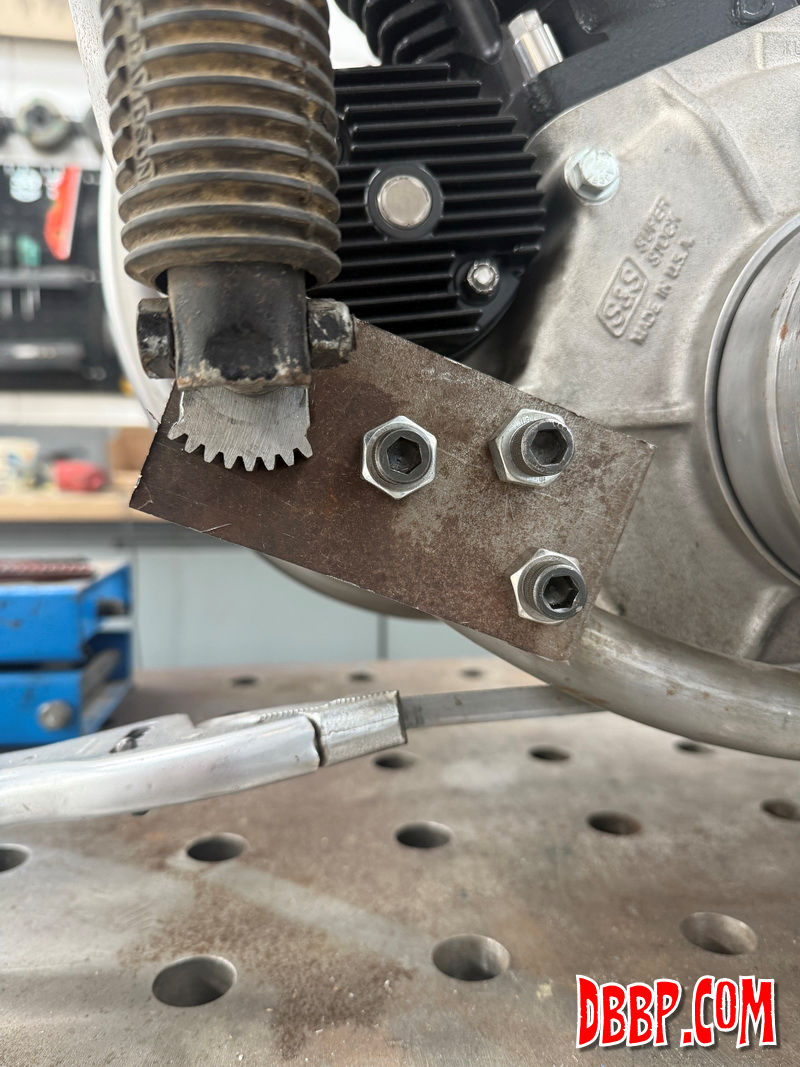

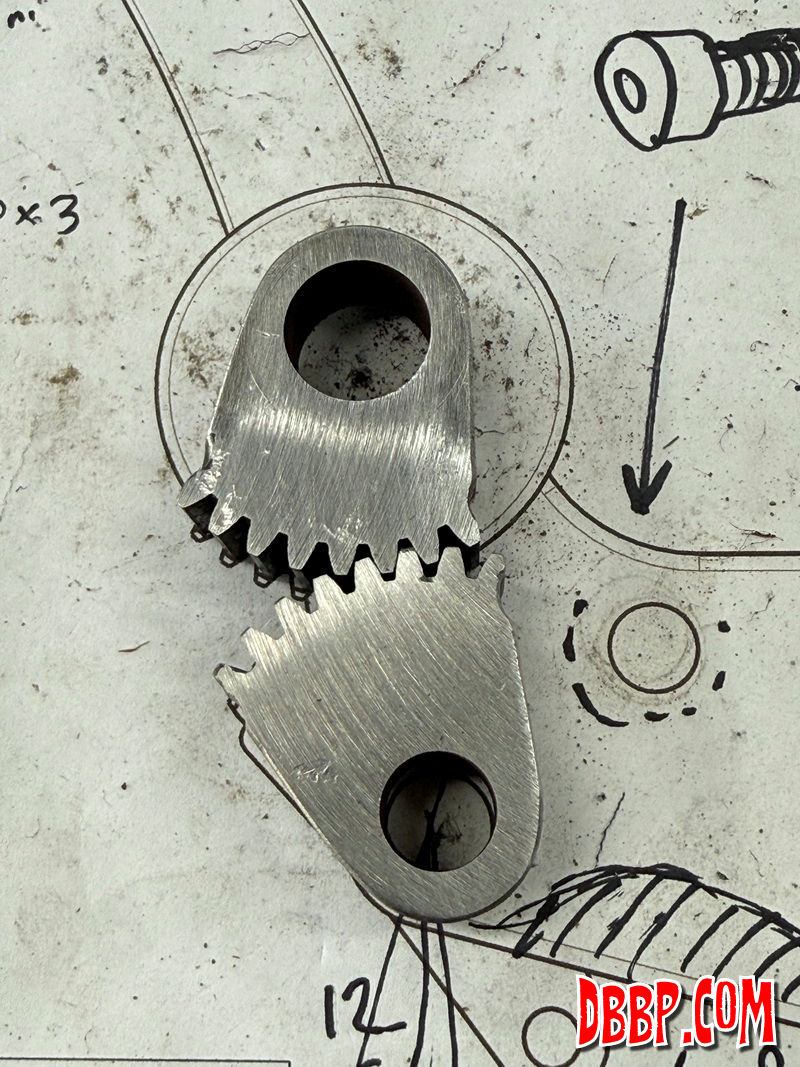

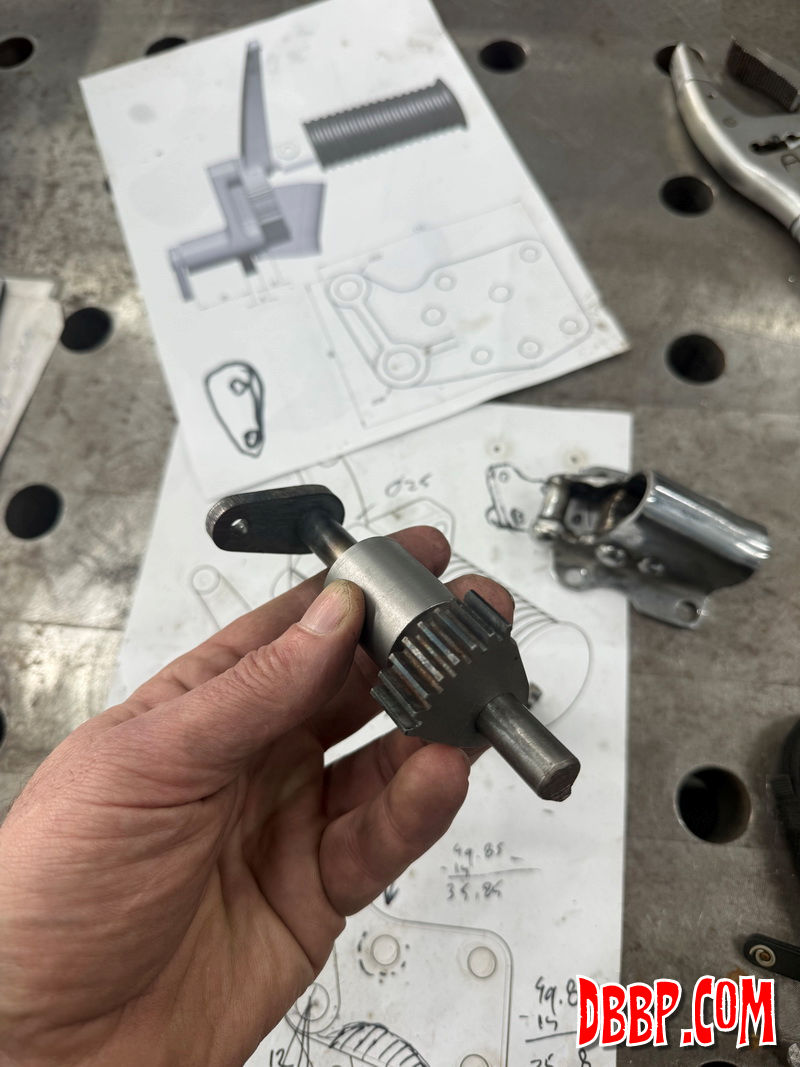

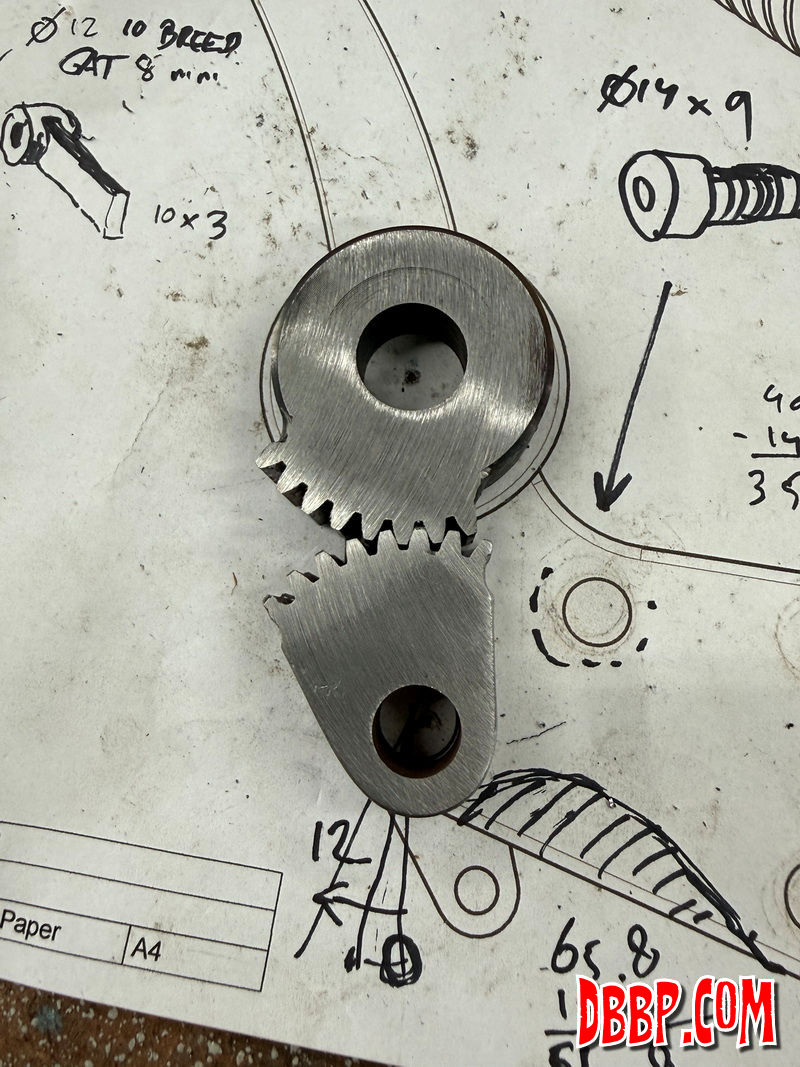

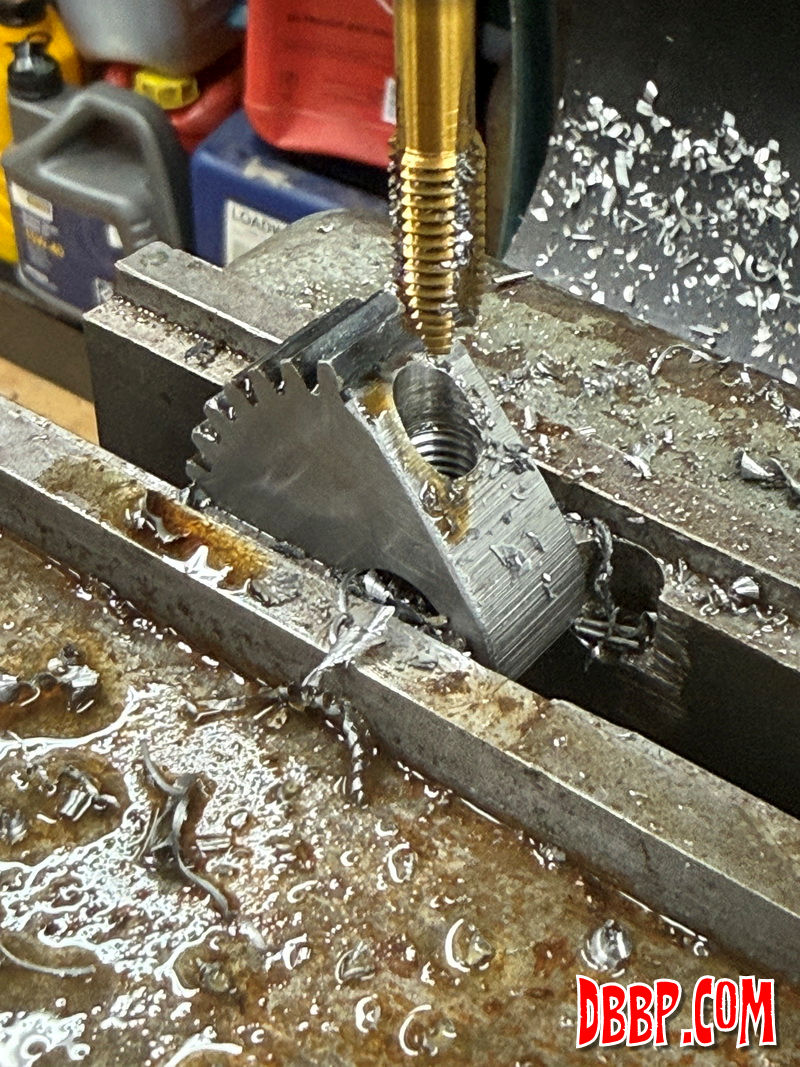

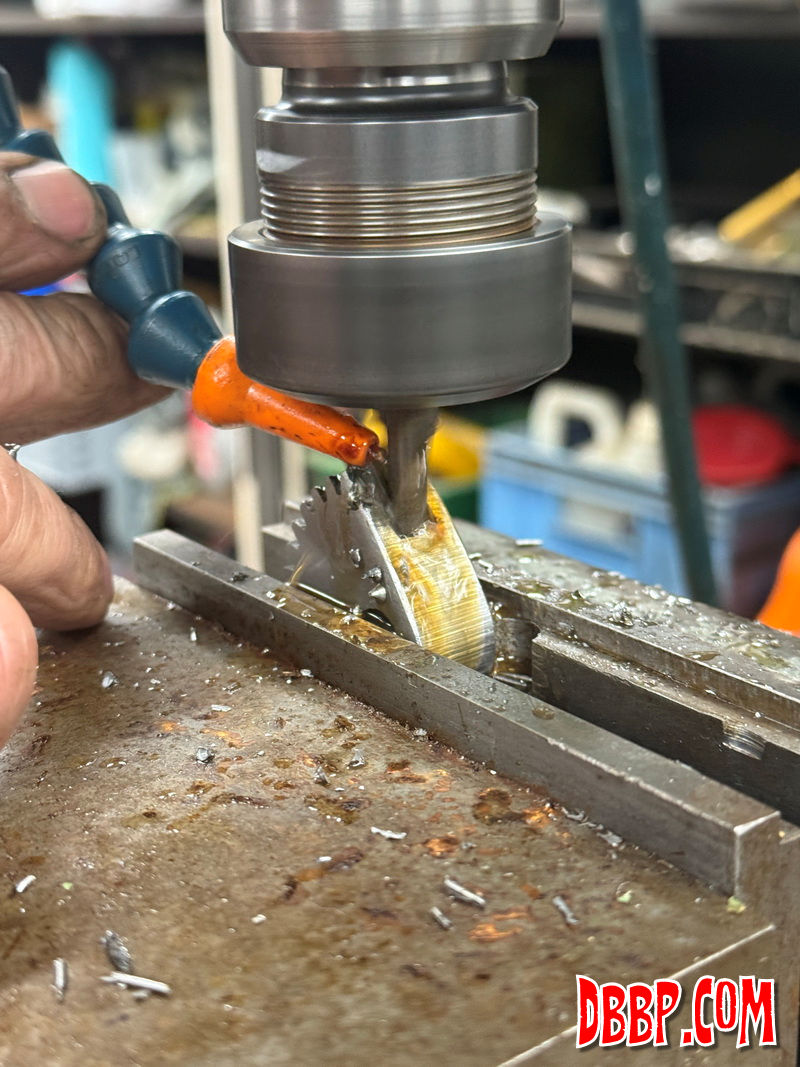

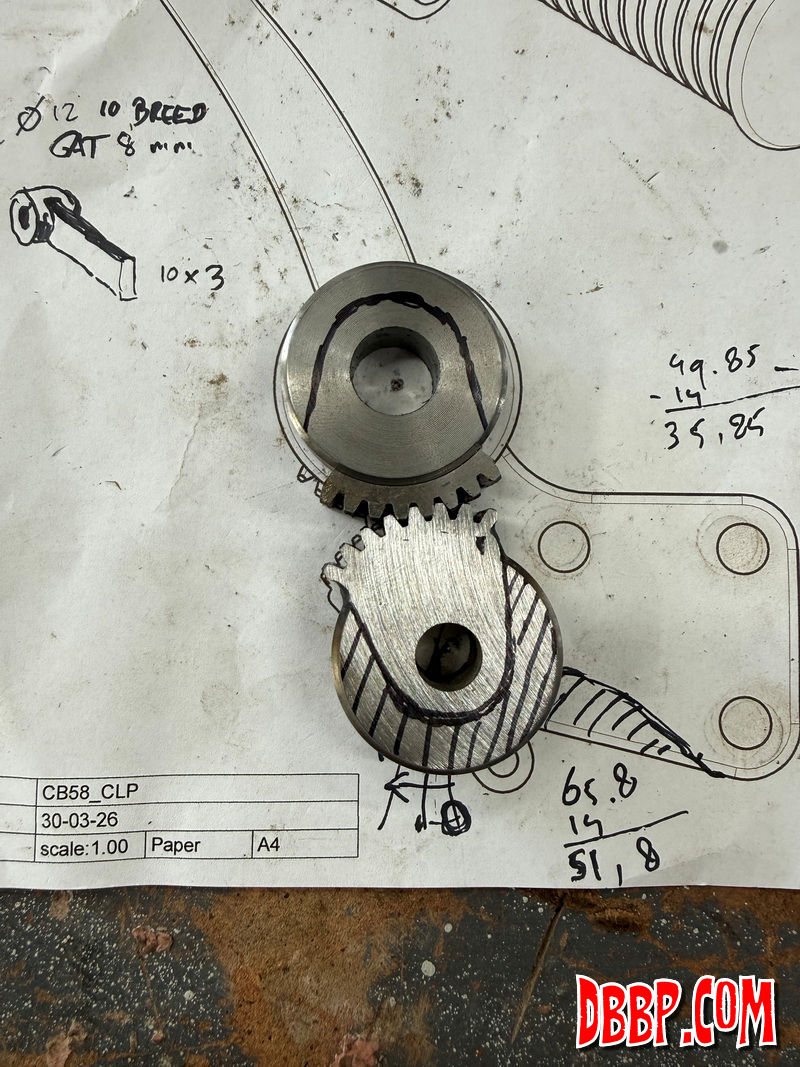

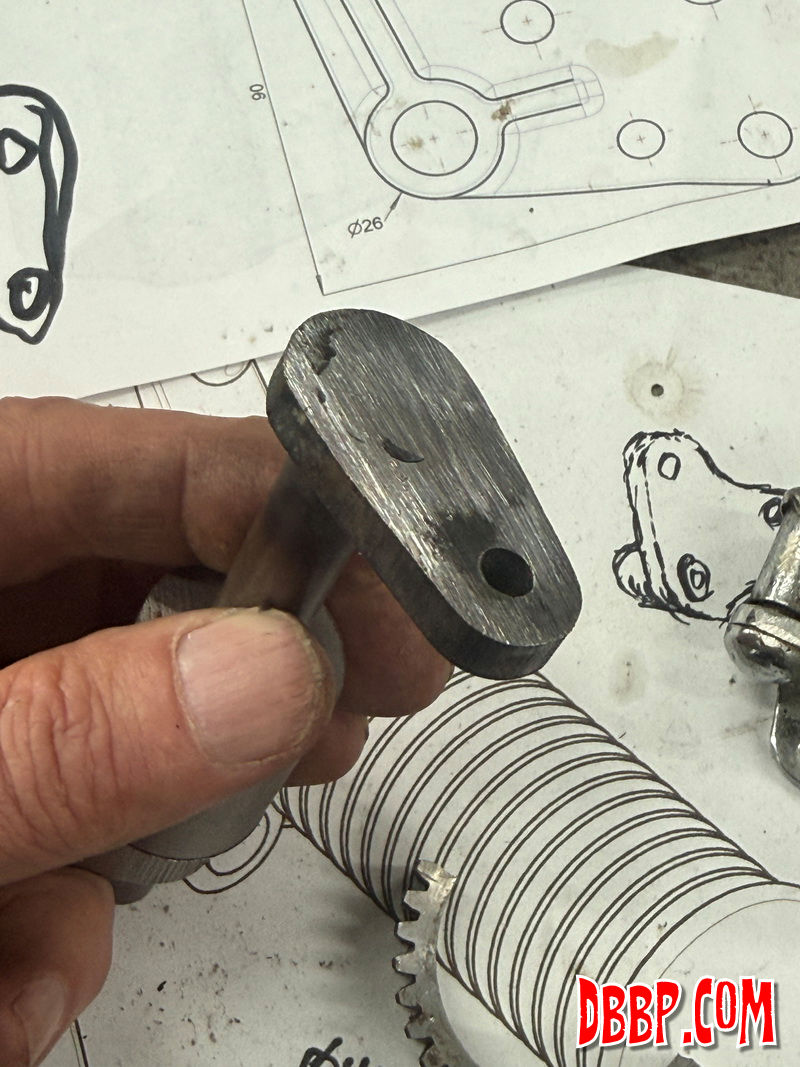

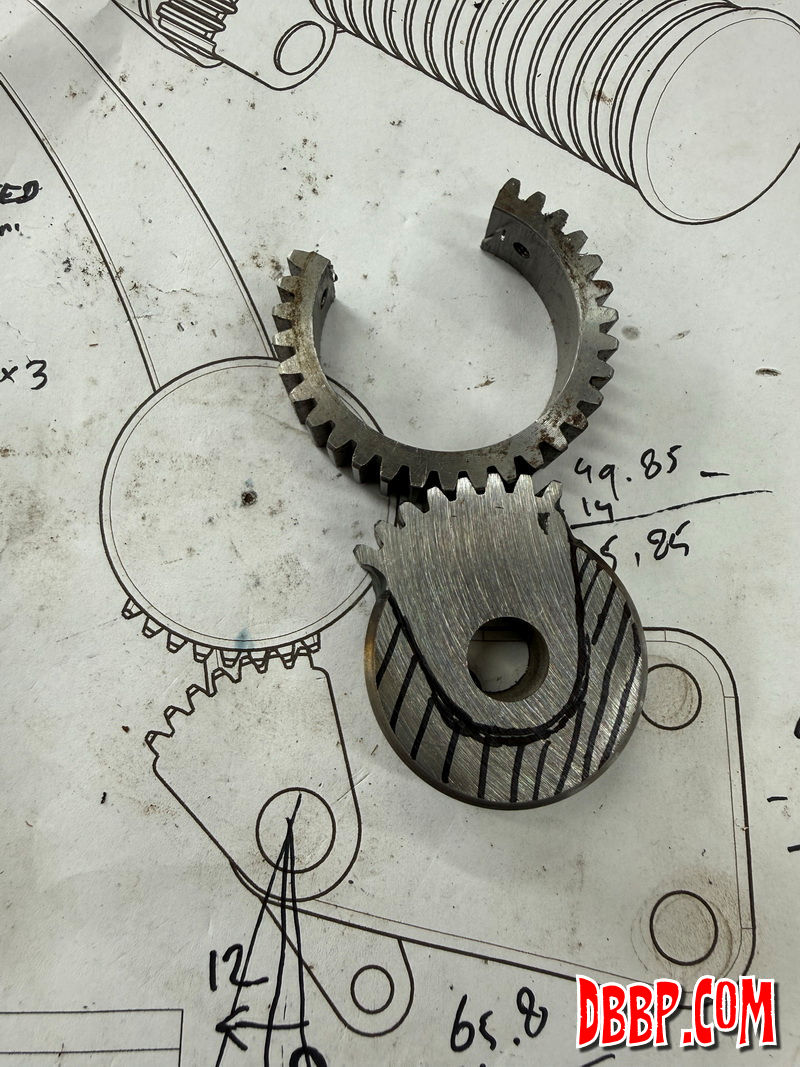

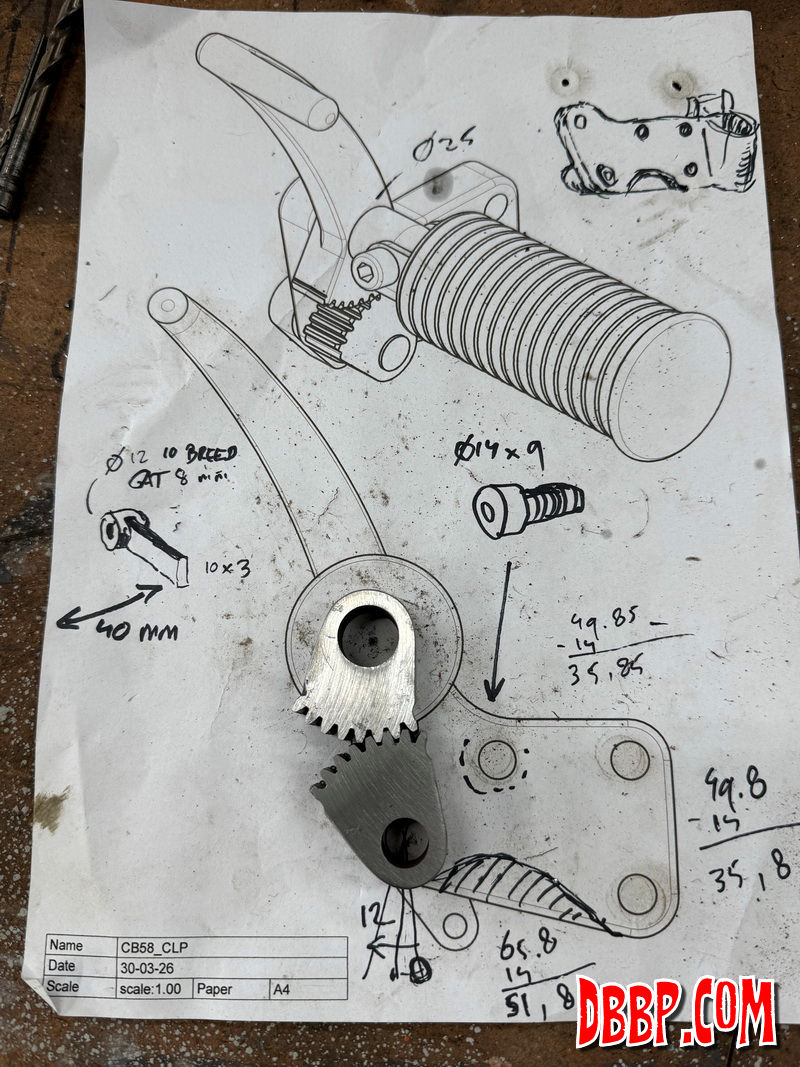

We continued with the mockup for the footclutch pedal, which
uses gears to reverse the direction. This is neccesary because
the hydraulic clutch is operated by pulling on a rod that runs
under/ behind the primary, along the lower frame tube. We will
test the mockup first before making the final version.

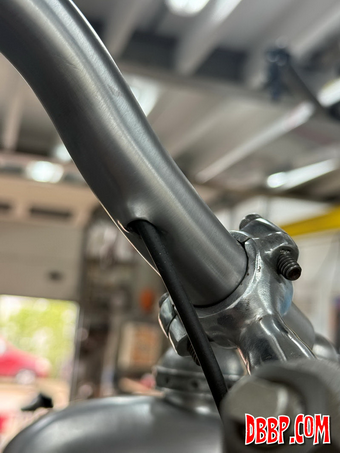

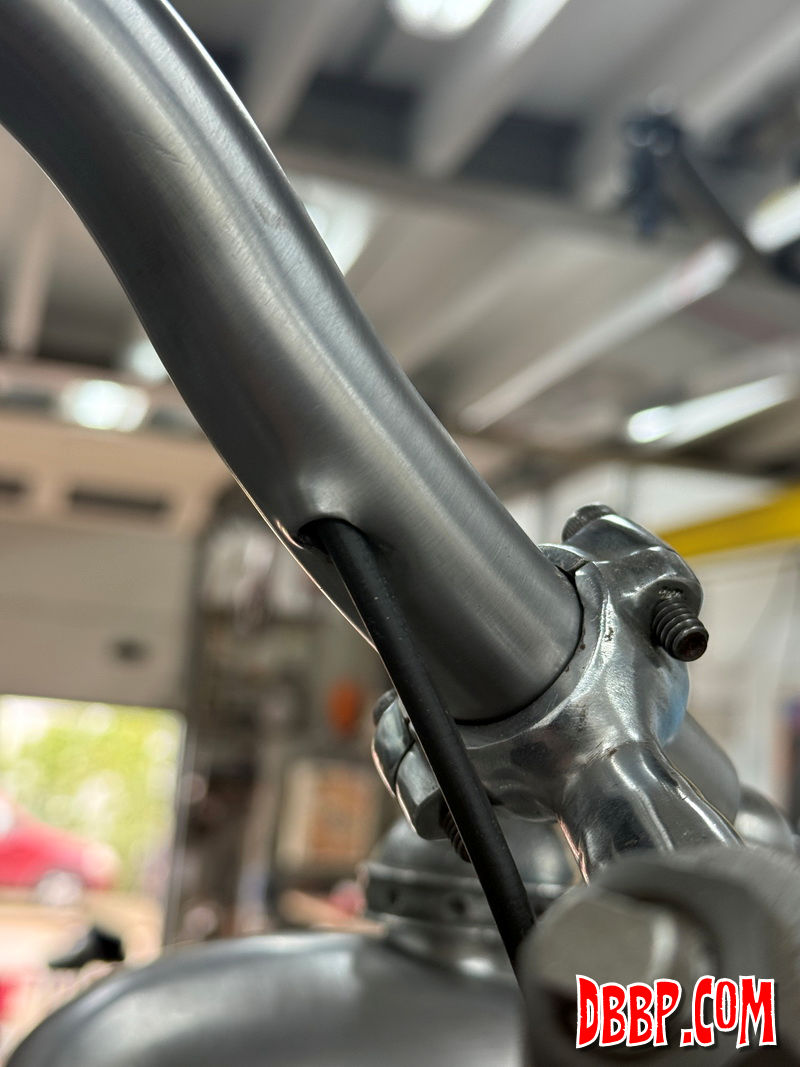

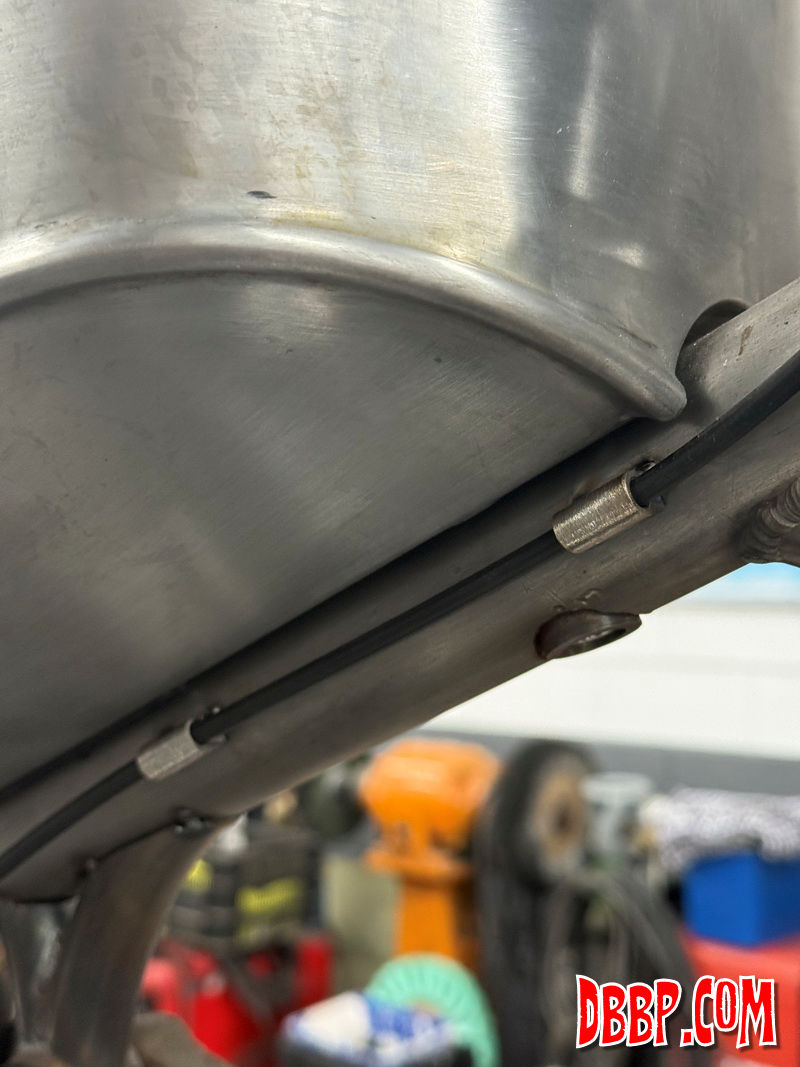

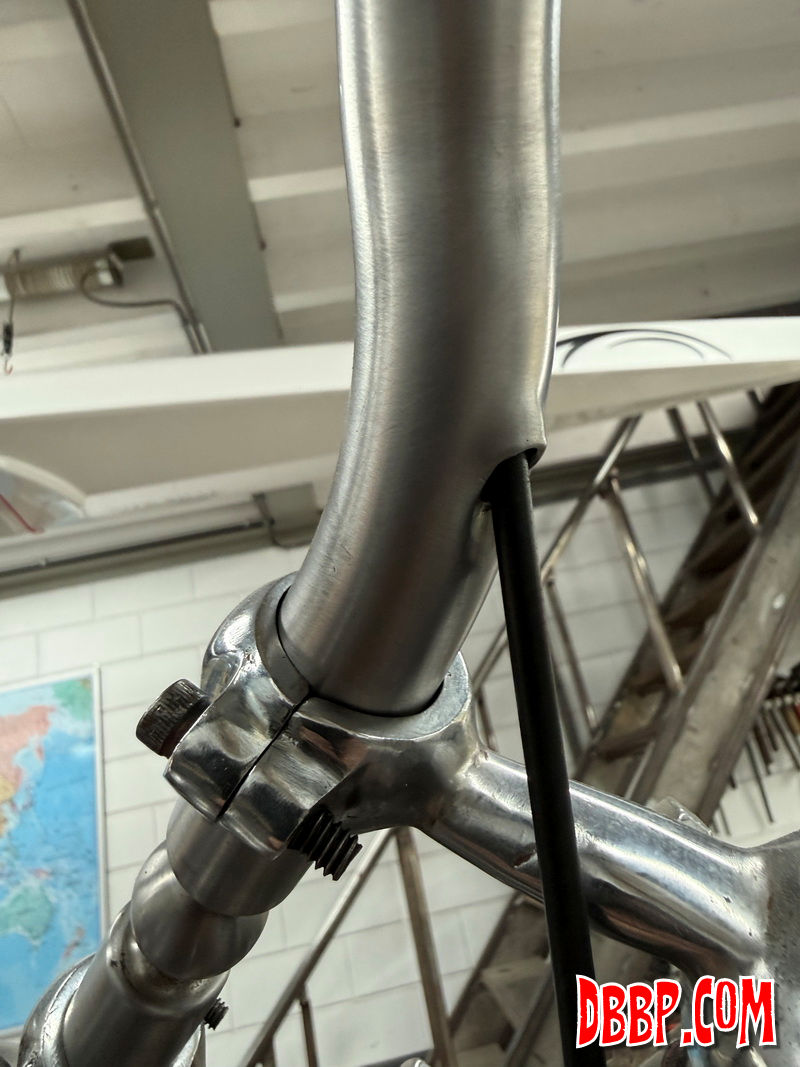

Last week we installed a Müller

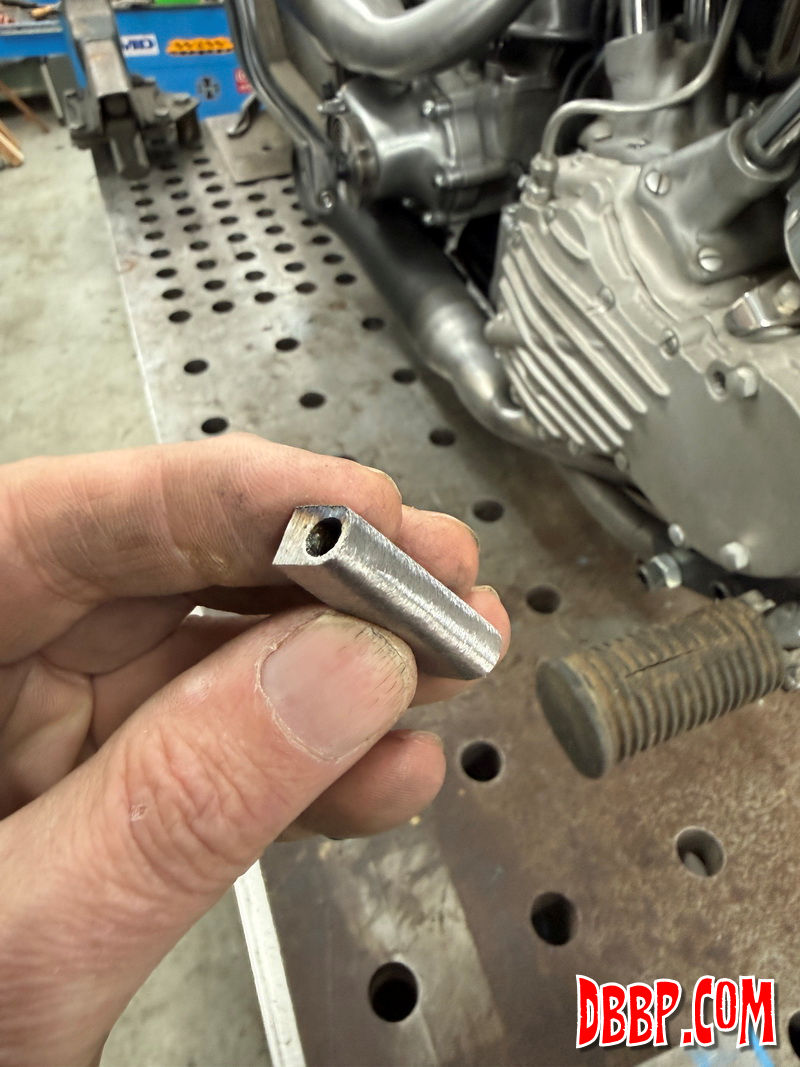

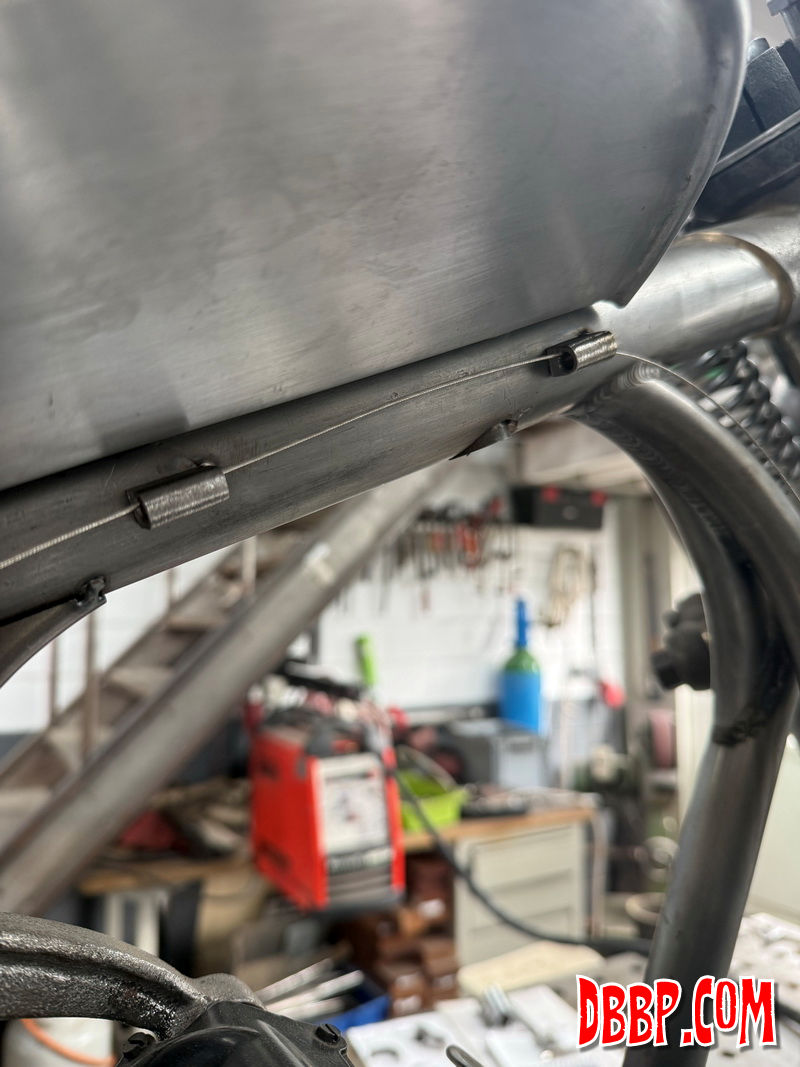

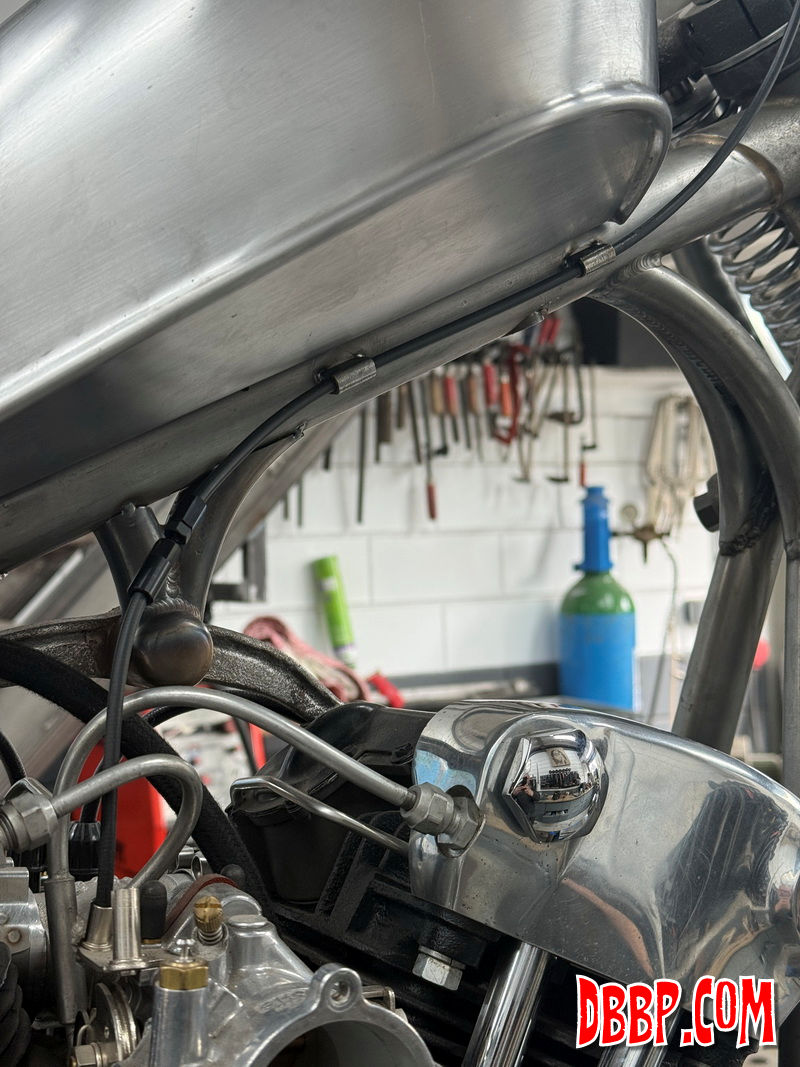

internal throttle, this week we made a few cable guides and

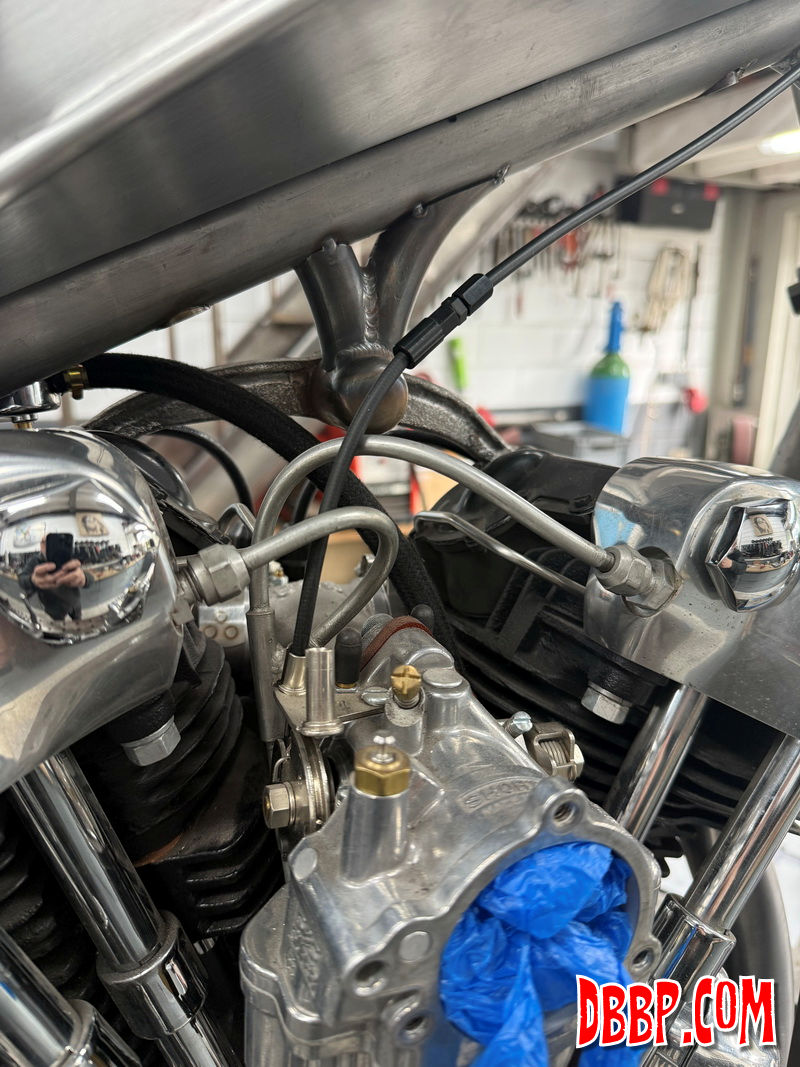

installed the throttle cable. The guides (along with several
other parts) are just tacked in place for now. When ready we
will strip down the whole bike and Aad will complete all welds.
Throttle works very smoothly now by the way!
