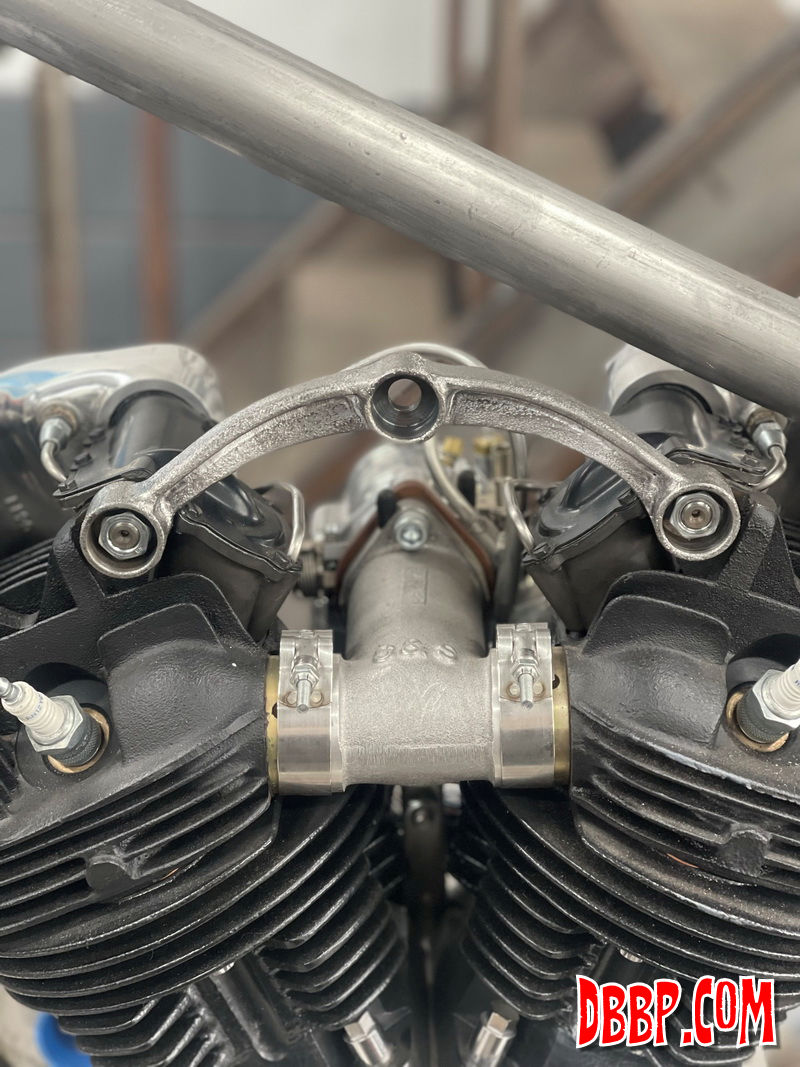

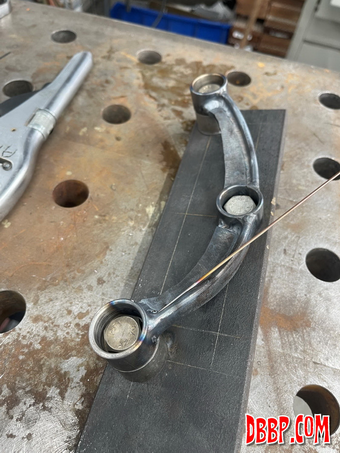

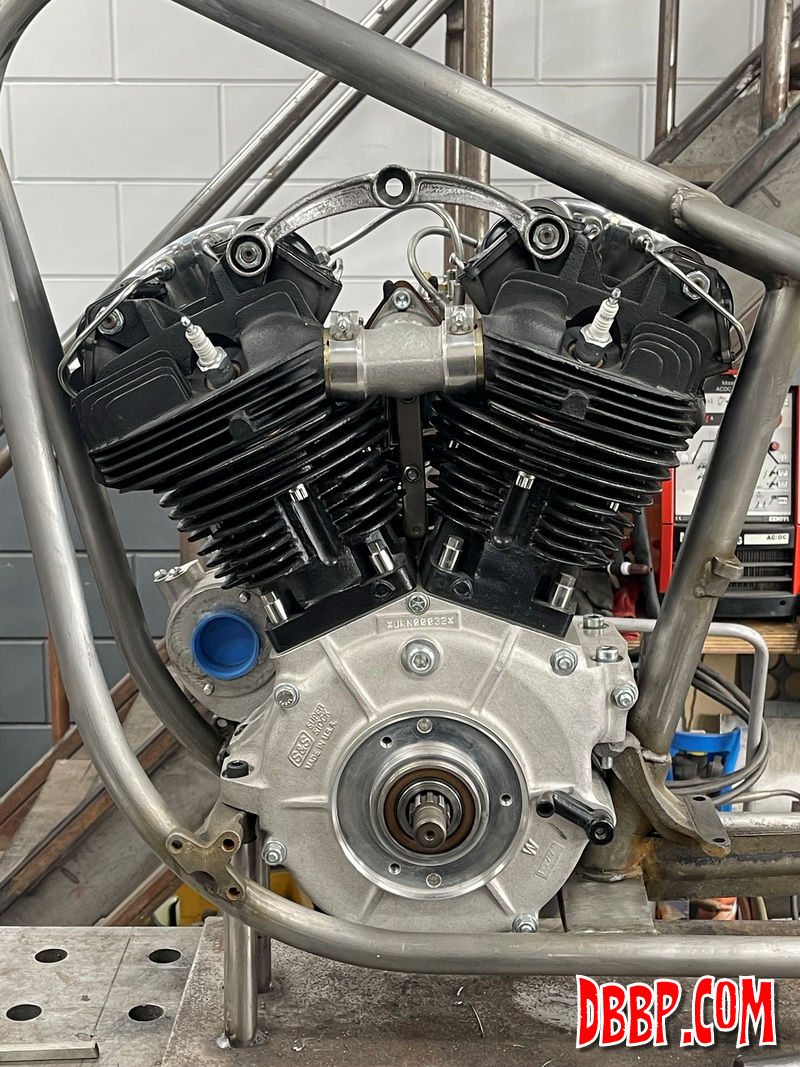

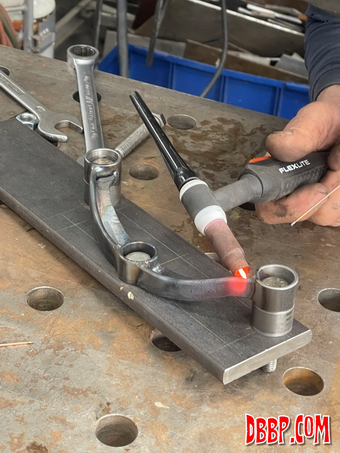

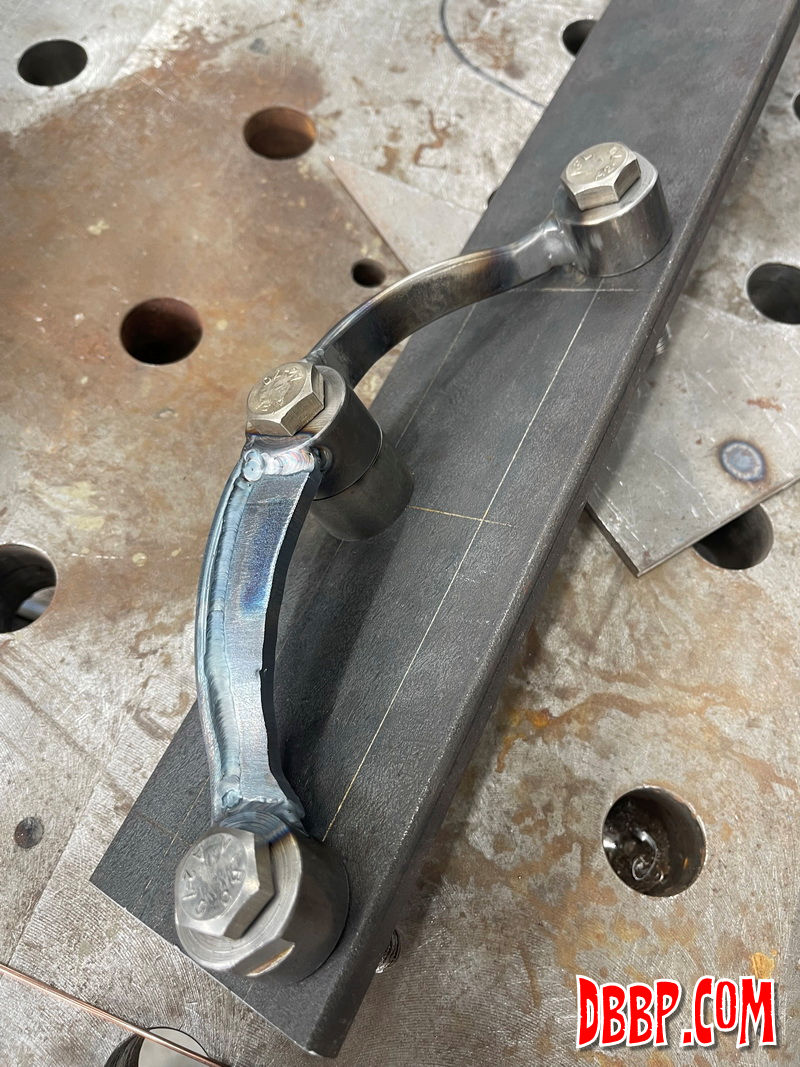

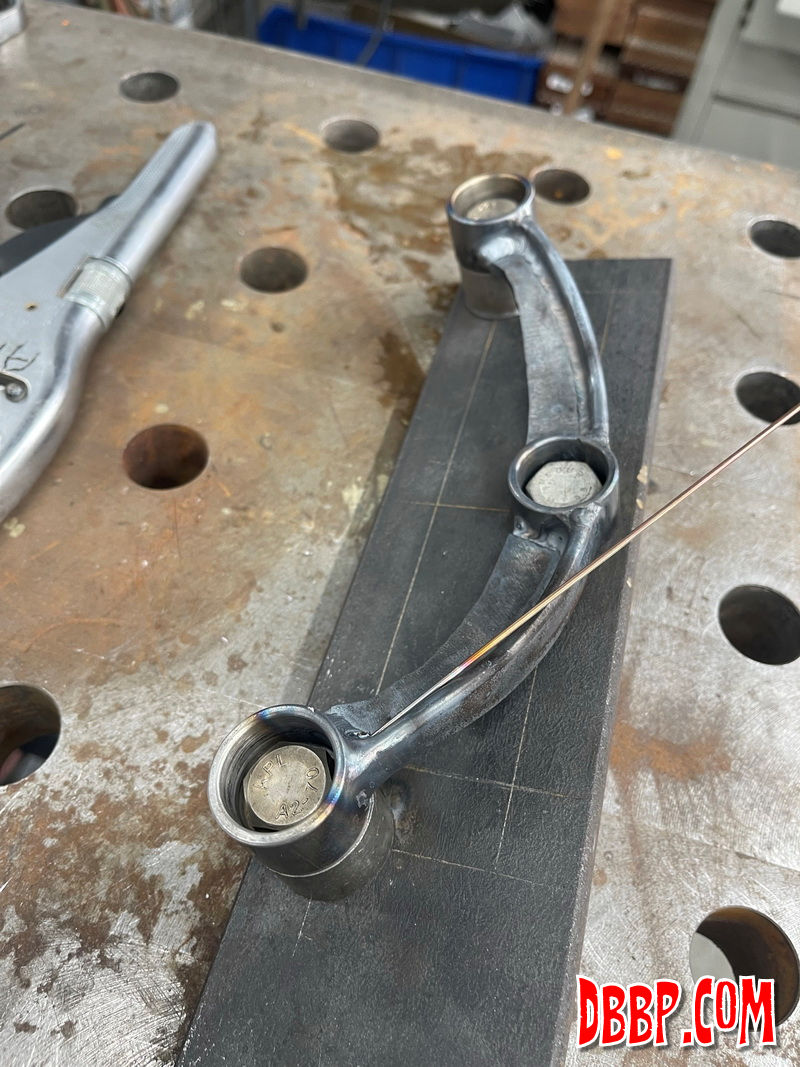

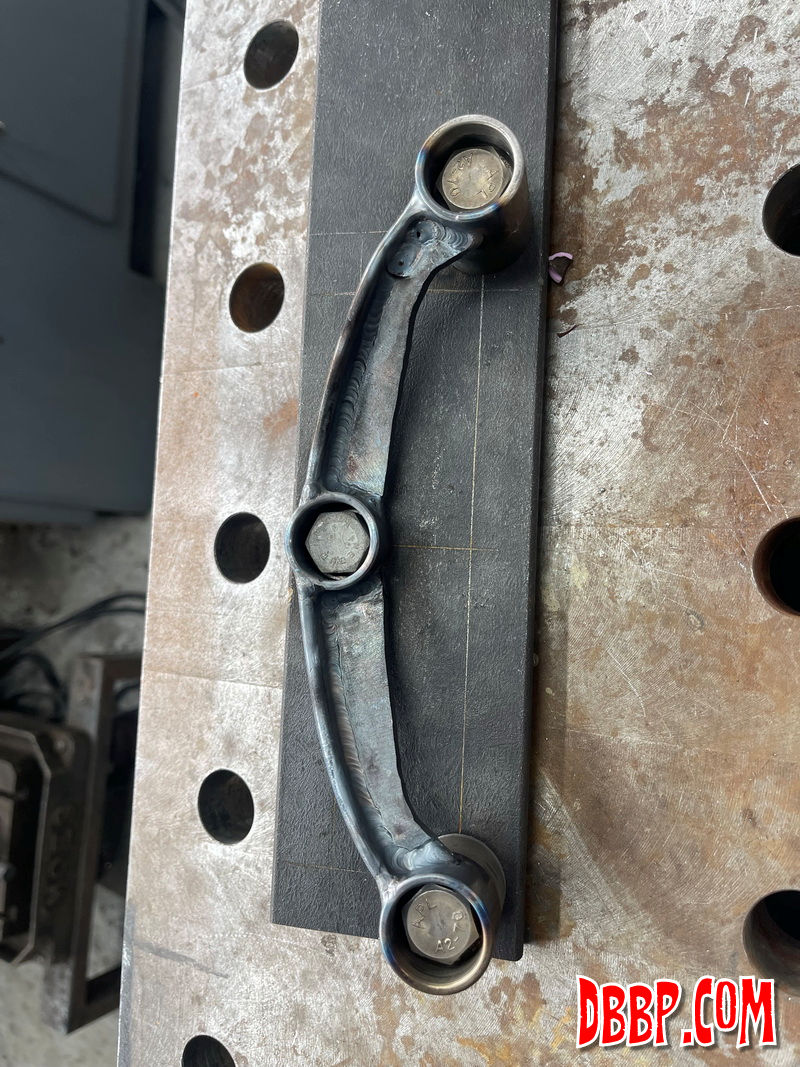

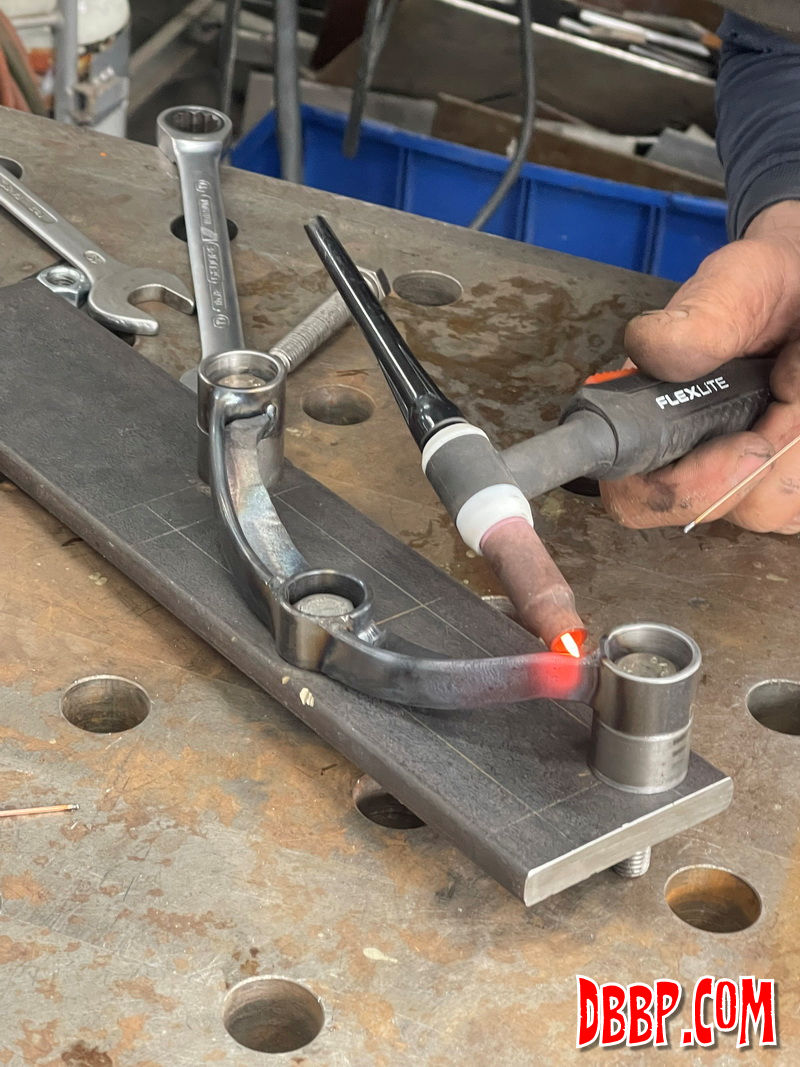

The little jig we made for the top motormount

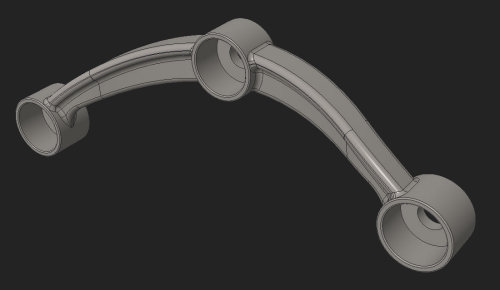

came in quite handy. We tried to make a part that would look
as old as the motor (made from 1936 to 1947) so definitely no
CNC! We wanted it to look like something that was made by a
blacksmith. The stock motormounts on a knuckle were made from
3 mm steel strip, ours has a T shape with the vertical part
6 mm and the horizontal part 4 mm thick, so should be plenty
strong.

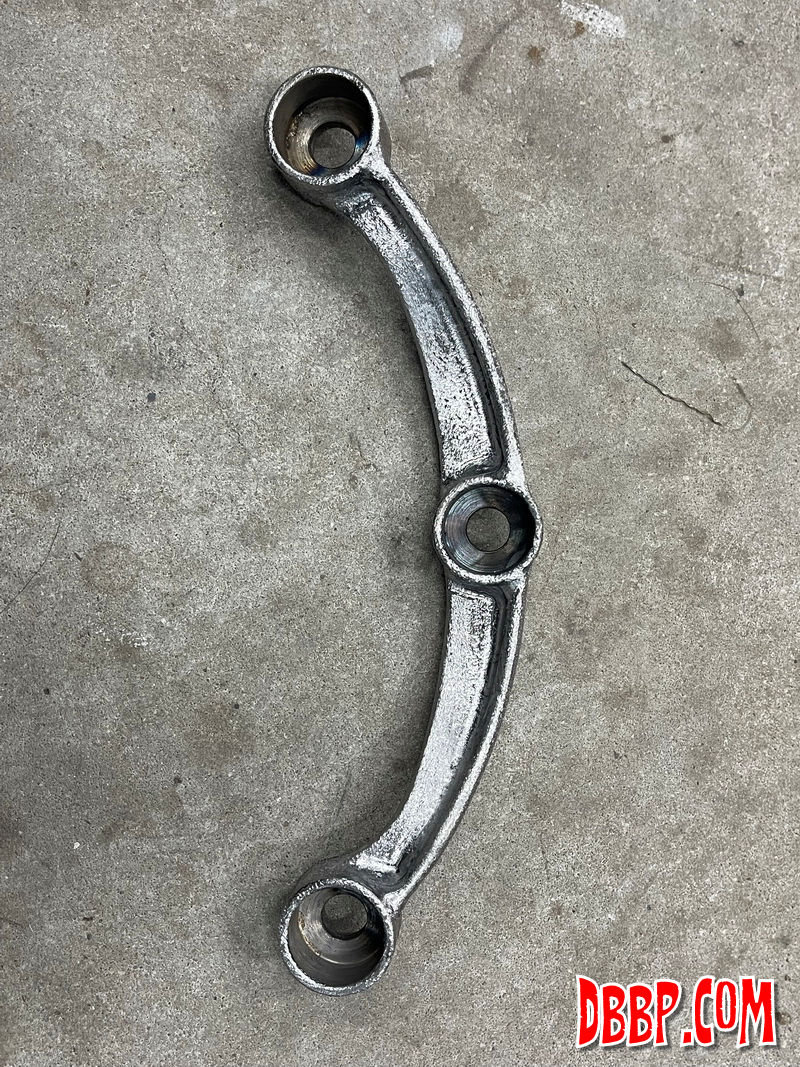

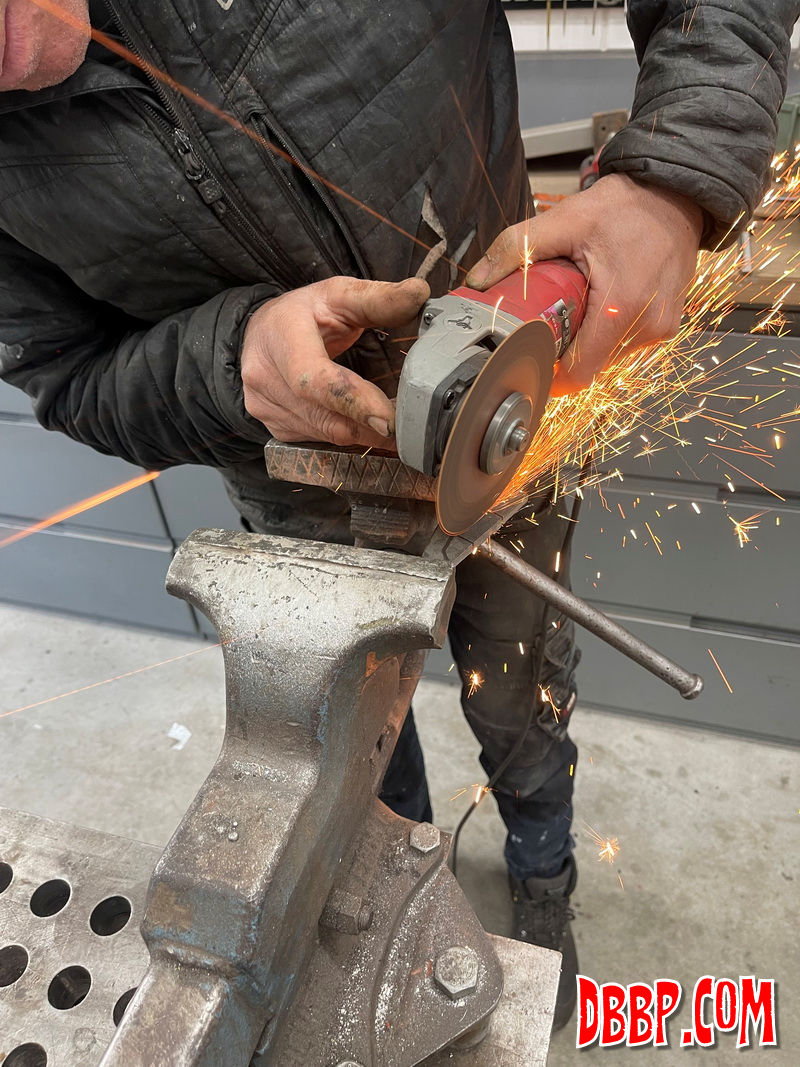

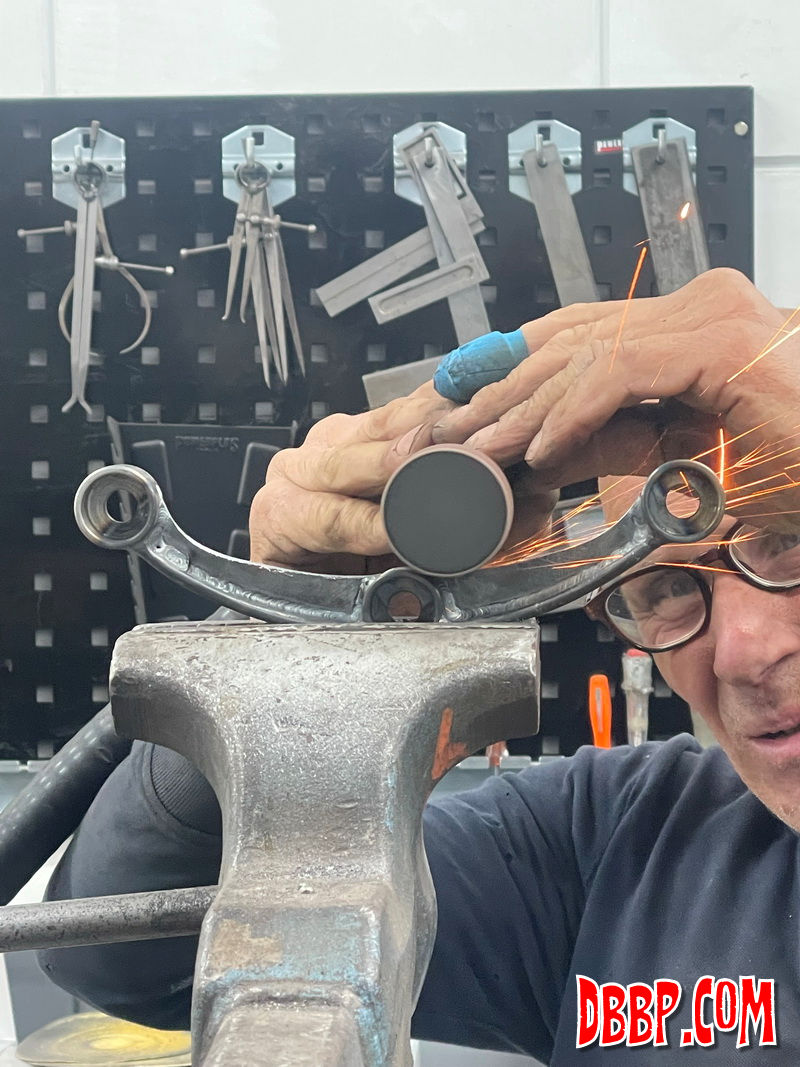

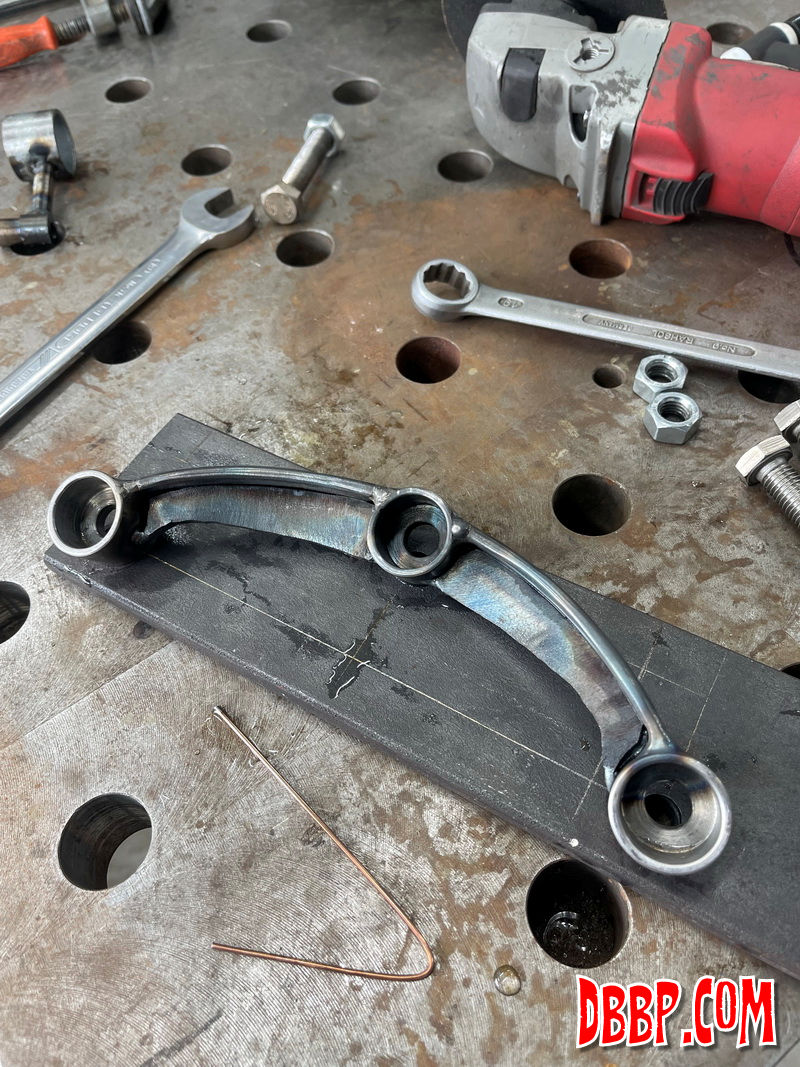

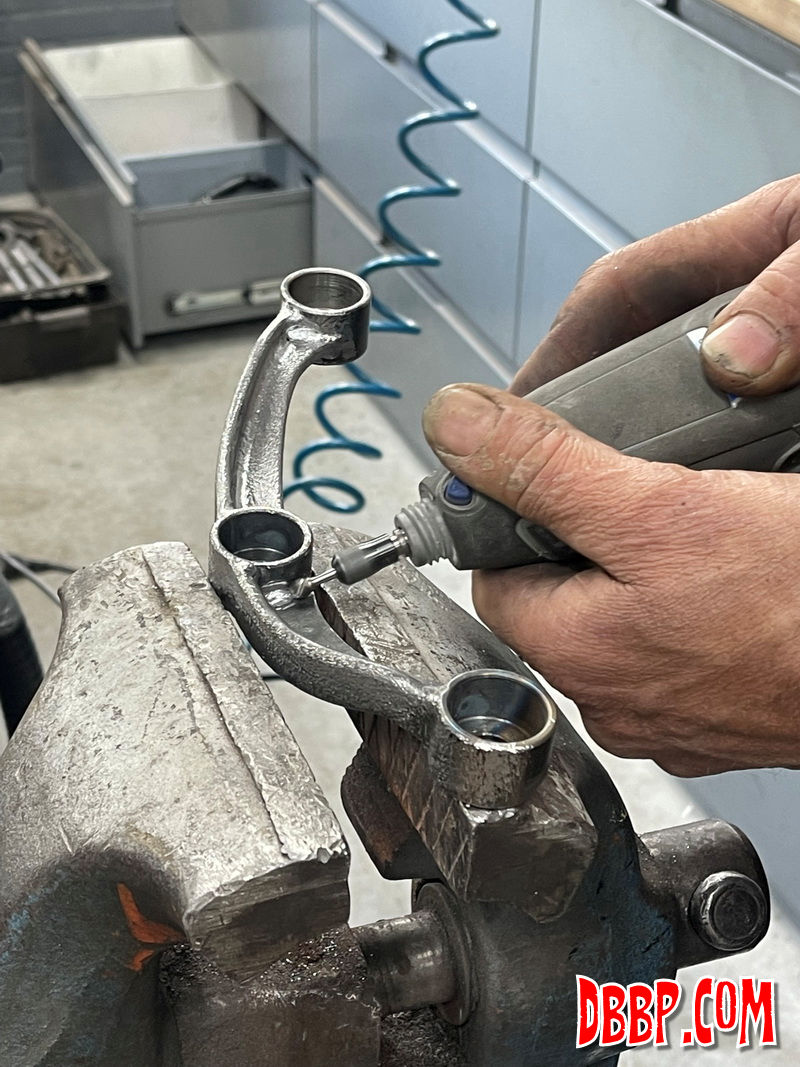

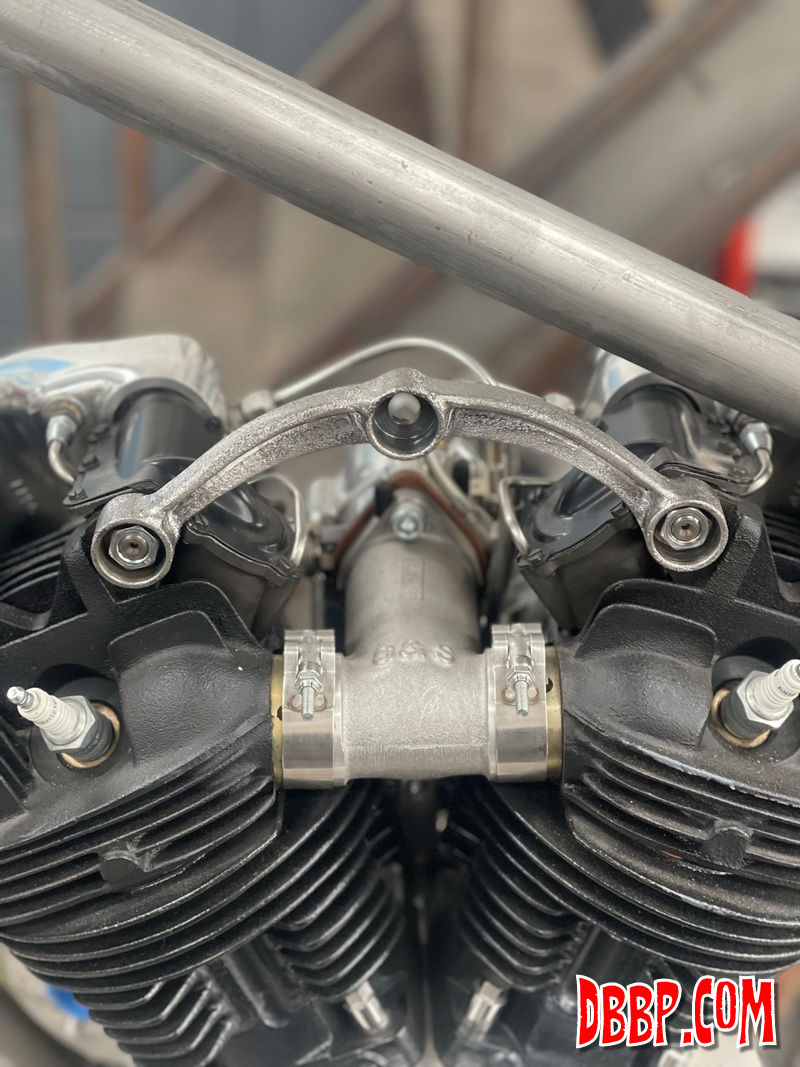

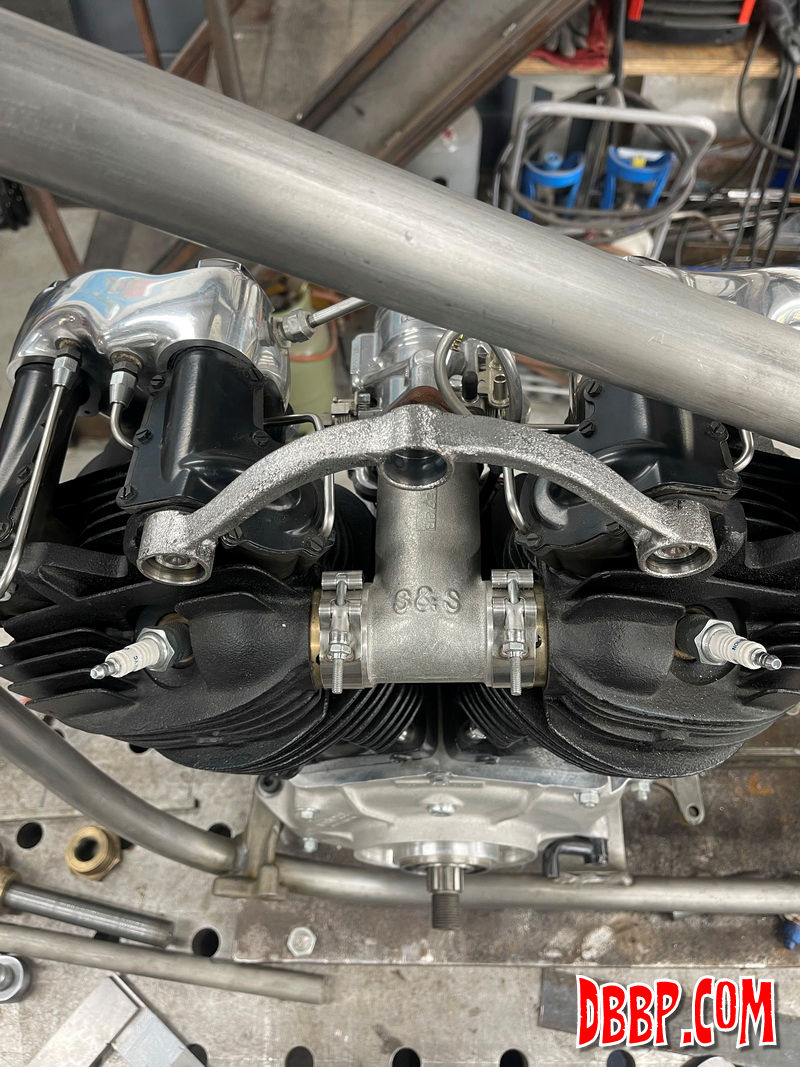

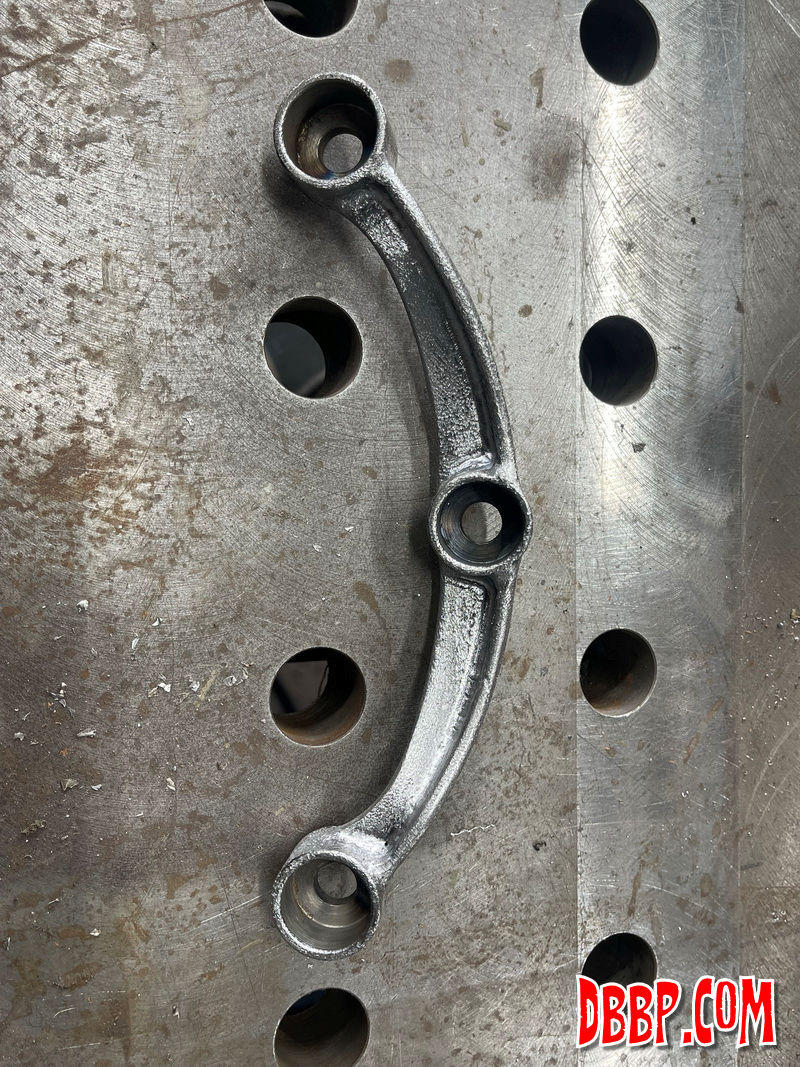

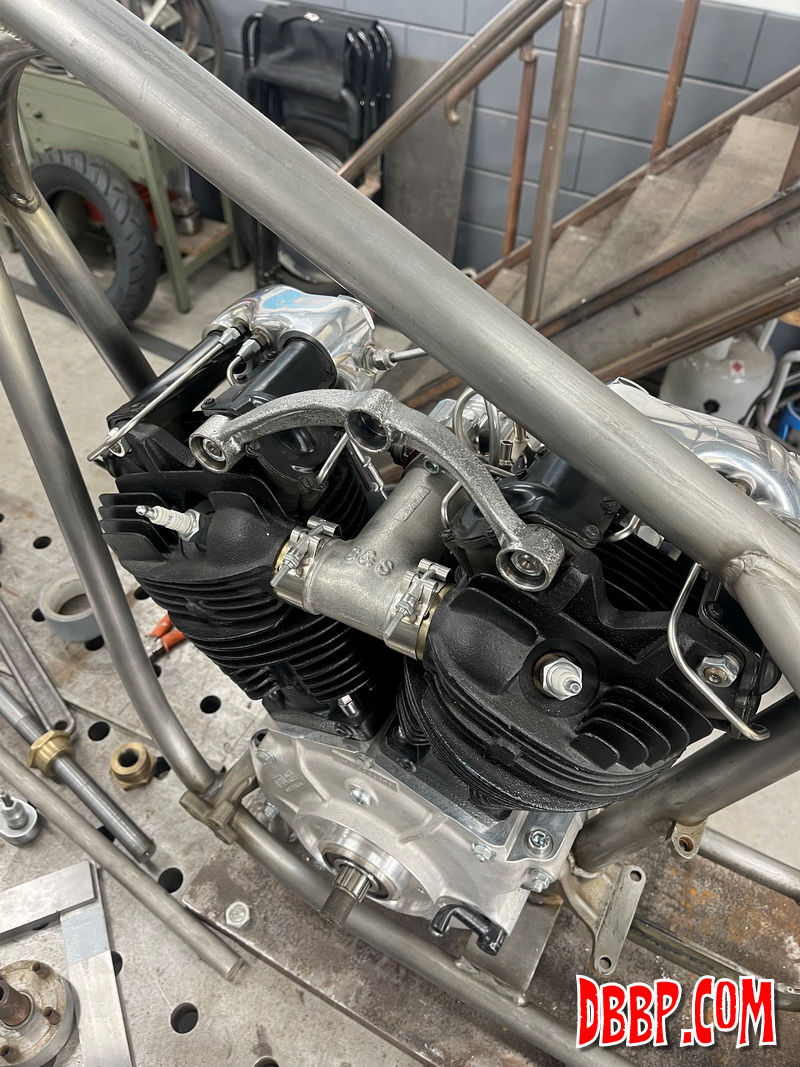

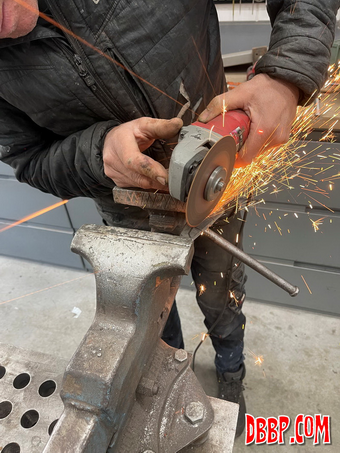

After welding and grinding we gave the whole
thing a textured surface, we are happy with the result!

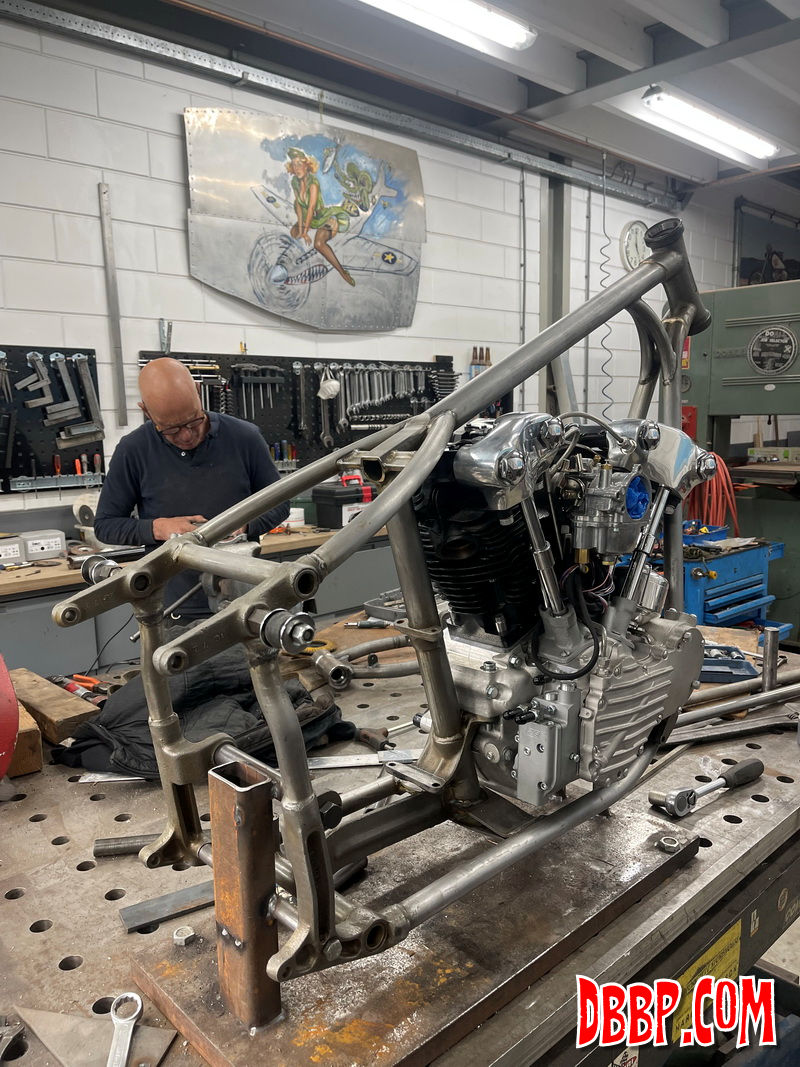

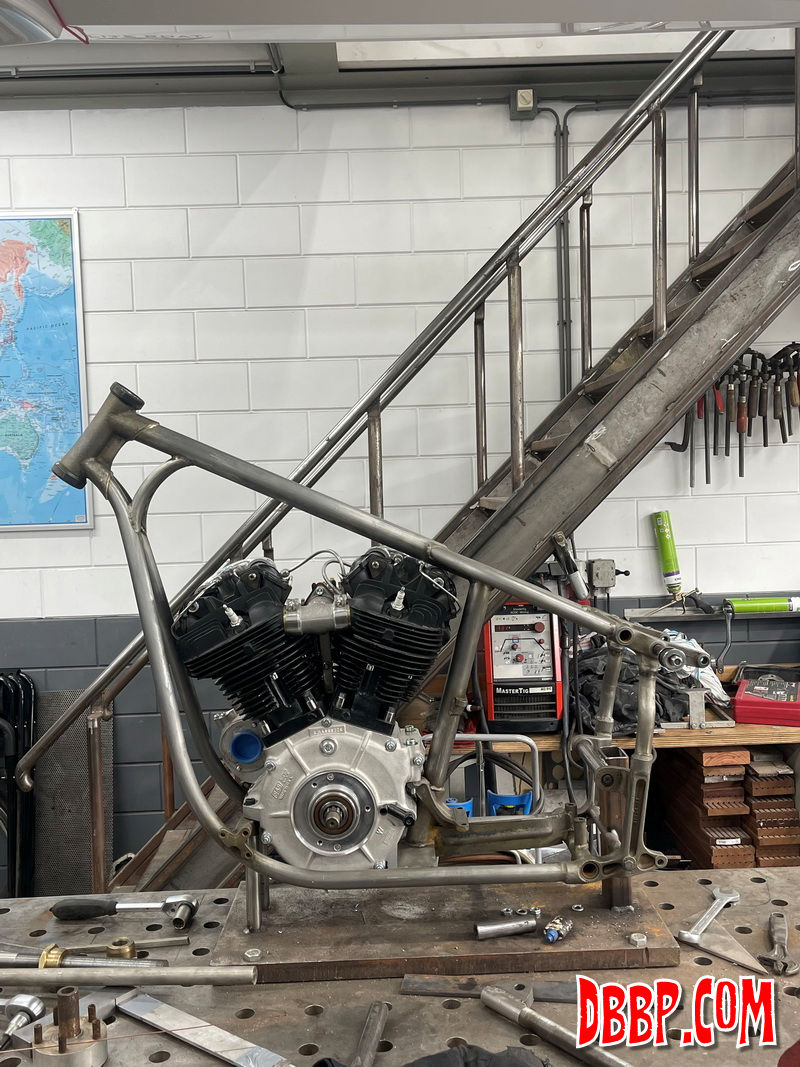

Next the frame part of the top
motormount and then the swingarm.
