Part 4: Bronze Risers

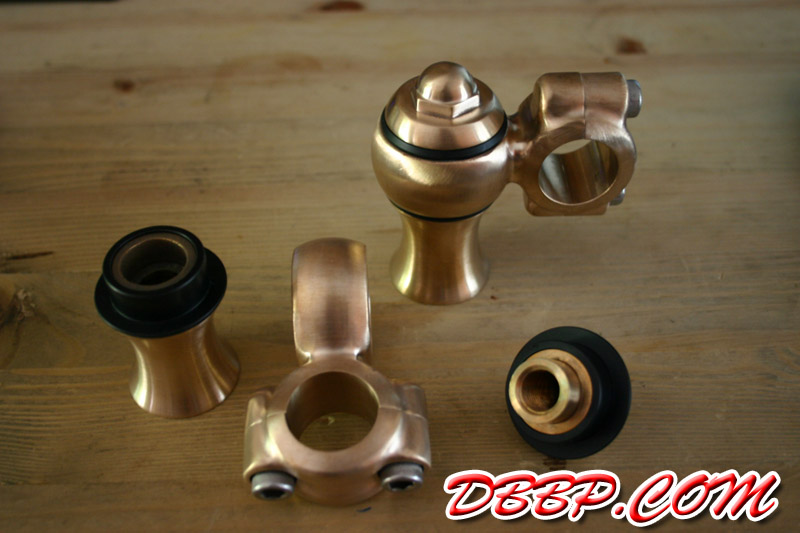

I have been making a few improvements on my risers:

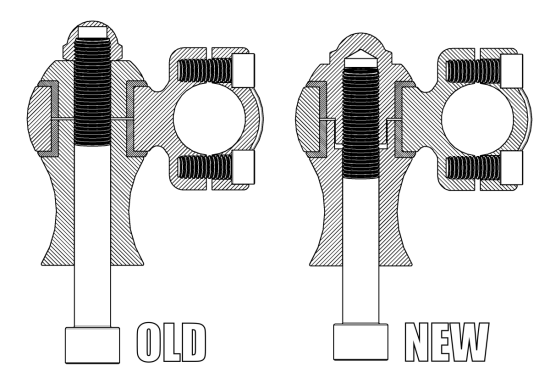

• In the old version the clamp (1) was cast bronze
  and part (2) and (3) were machined in brass; in the
  new version part (1), (2) and (3) are all cast bronze.
• The old version had an acorn nut on top of the cap(2);
  in the new version the acorn nut and cap have been
  combined into a single cast part with a lot more thread
  surface making it stronger and easier to adapt to
  various thicknesses of fork trees.

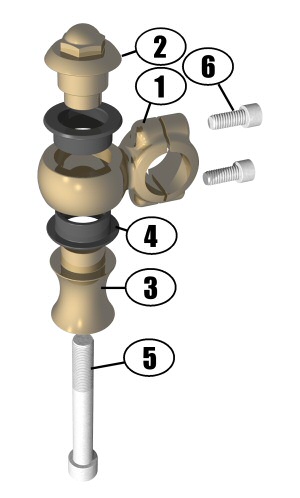

Clamp (Cast Bronze) Cap (Cast Bronze) Pillar (Cast Bronze) Insert (Delrin) Sockethead Cap Screw 1/2-20 x 3-1/2 (Stainless Steel) Sockethead Cap Screw 5/16-18 x 3/4 (Stainless Steel)

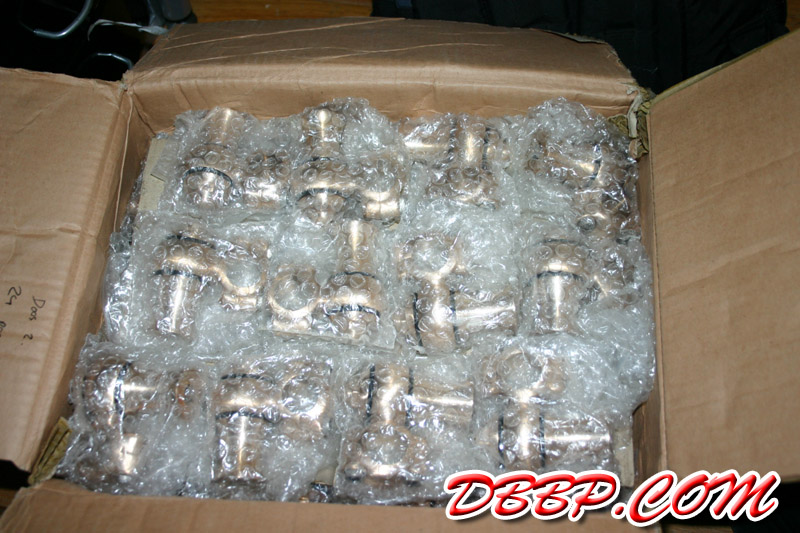

At the moment I have a few boxes of new risers ready to sell,
The risers are available in my webshop or at W&W

Dealer Enquiries welcome
